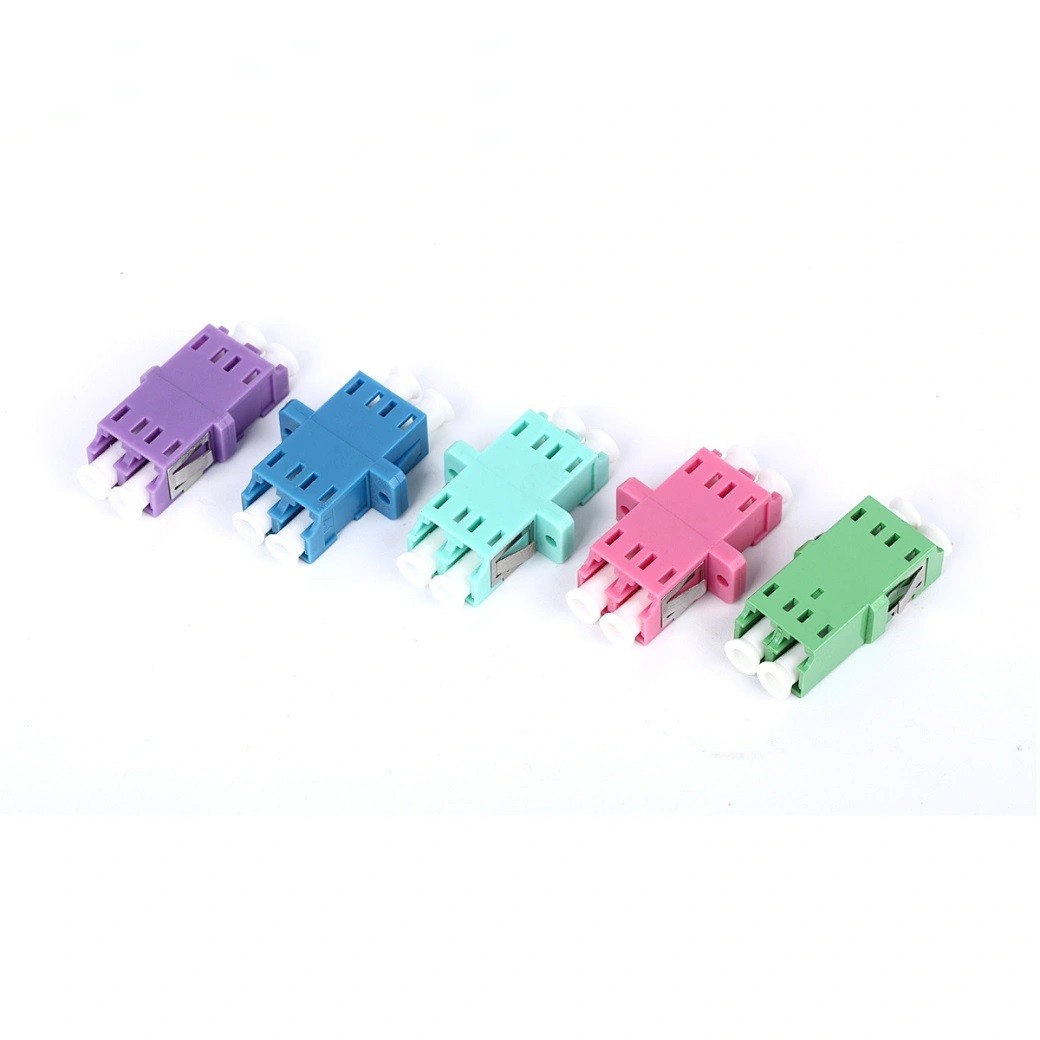

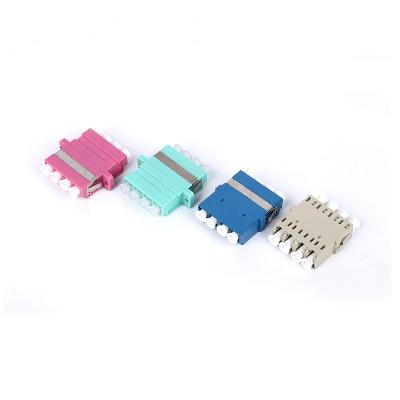

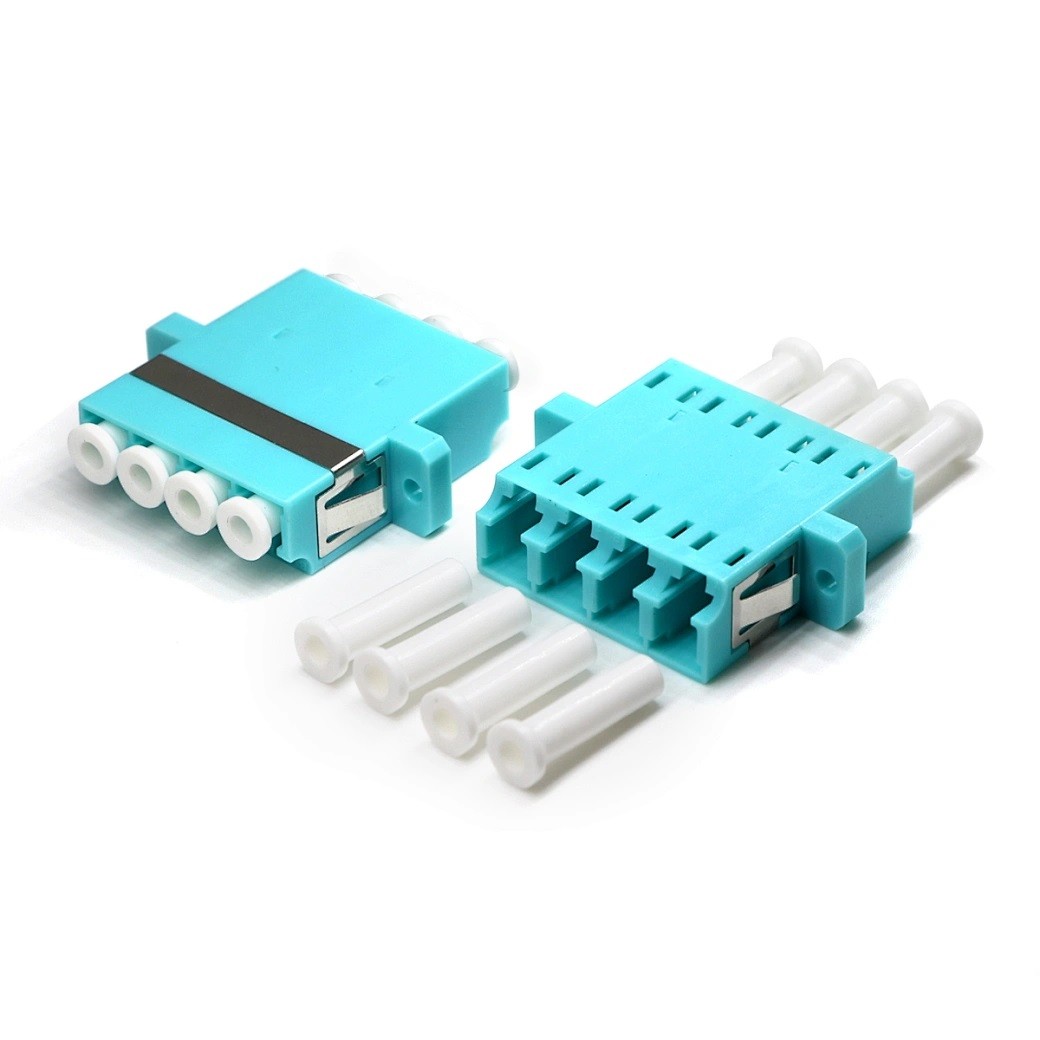

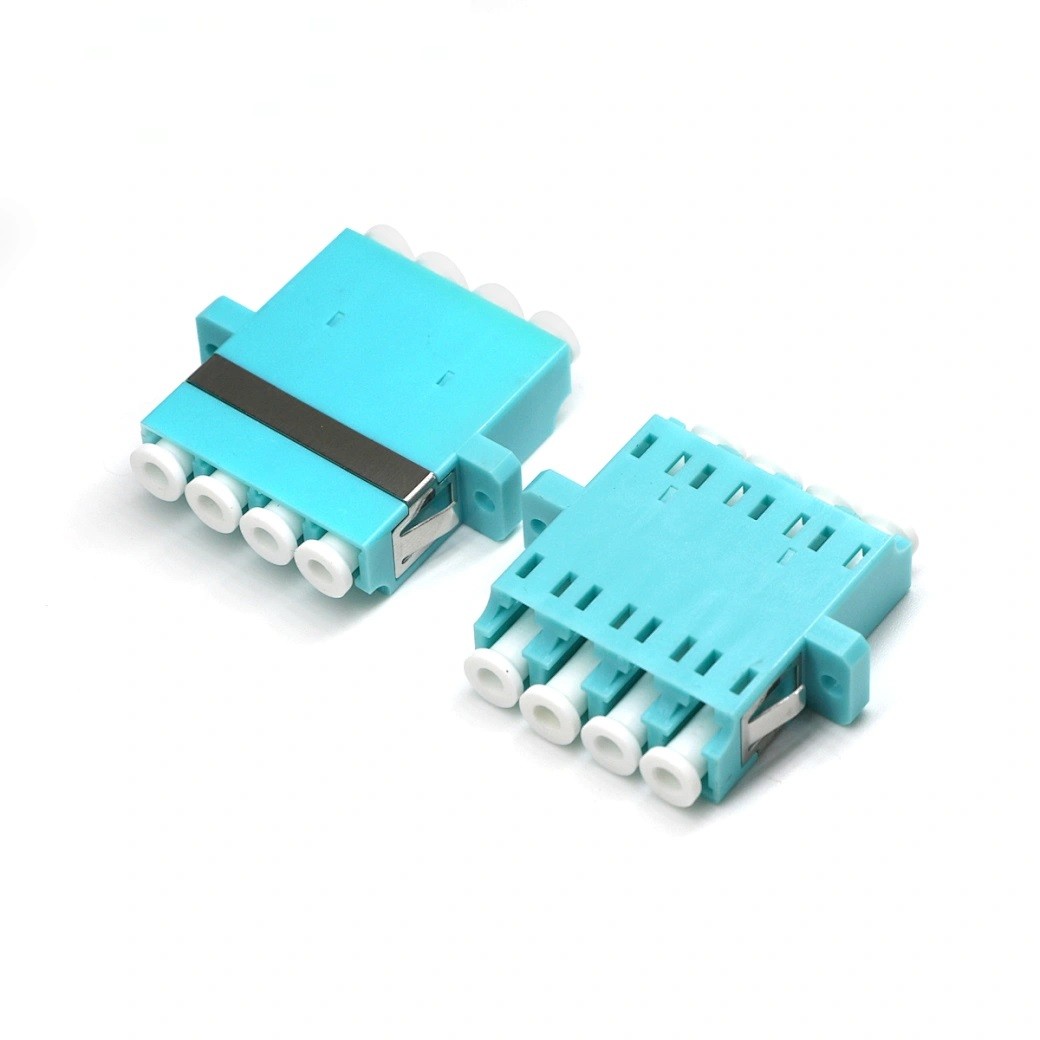

Multimode LC Quad Optical Fiber Adapter with ABS Housing , Ceramic Sleeve

Optical Fiber Adapter are used in fiber optic connection, the typical use is to provide a cable to
cable fiber connection.The LC Quad Optical Fiber Adapter were developed by Lucent Technologies. They are composed
of a plastic housing with an RJ45 push-pull style clip.Single-mode and multimode LC adapters come with a choice of
zirconia ceramic or phosphor bronze split sleeves, including zirconia diagonal split sleeves for PC and APC applications.

Features:

Low insertion loss value
Choice of housing and sleeve materials
Stable capability and high reliability
Excellent mechanical capability
Variety of colors

Quad Fiber Adapter Application:

CATV
Telecom networks
Optical test equipments
Local area networks
Wide area networks
Data processing networks

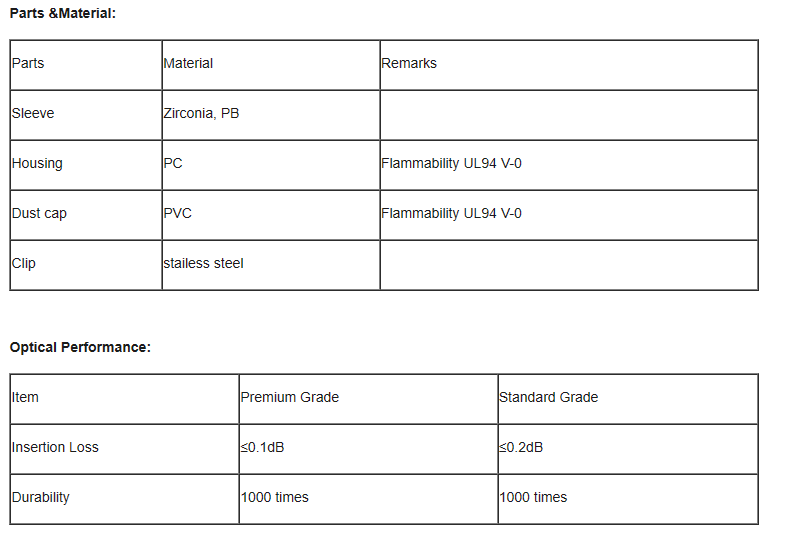

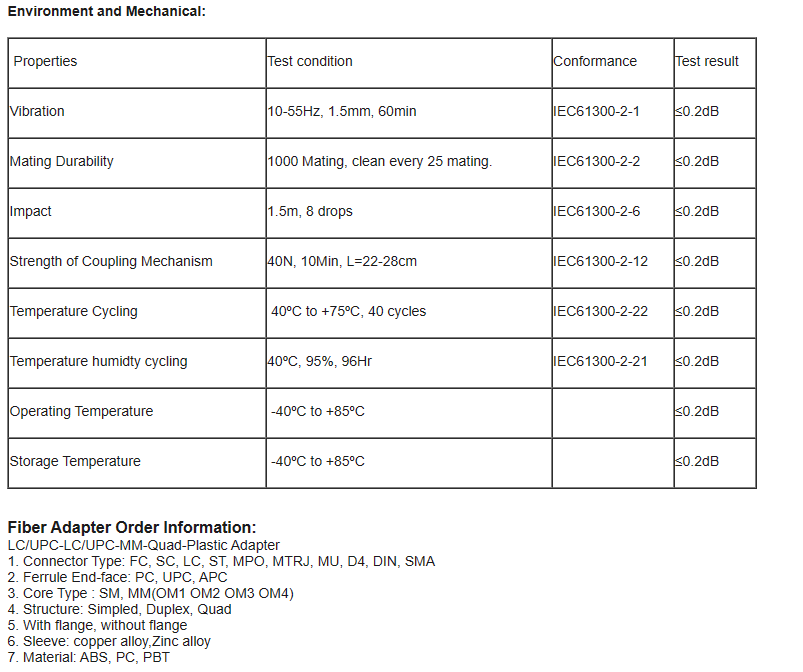

Multimode LC Quad Optical Fiber Adapter:
