OEM SC LC Mu Ceramic Fiber Optical ConnectorFc Apc Fiber Connector Product Features:
Compliance with IEC ,YD-T826/1996, NTT, YD/T826, YD/T895 and YD/T896 standardLow insertion loss, high return attenuation, high stabilityRepeated several mating characteristics, interchangeabilityStandard metal partsBayonet connection, high-density dockingCeramic ferrule, PC, UPC and APC polishingProvide ordinary PVC or LSZH fiber optic cable
Ceramic Fiber Connector Application:
Telecommunications networks
Test equipment
Fiber optic communication systems
Optical fiber access networks
Optical fiber CATV
Fiber optic LAN
Description:
The fast connector is designed for high quality and high efficiency for installation
The structure of crimping position is a unique design, and need not gluing, polishing neither any
consumables.

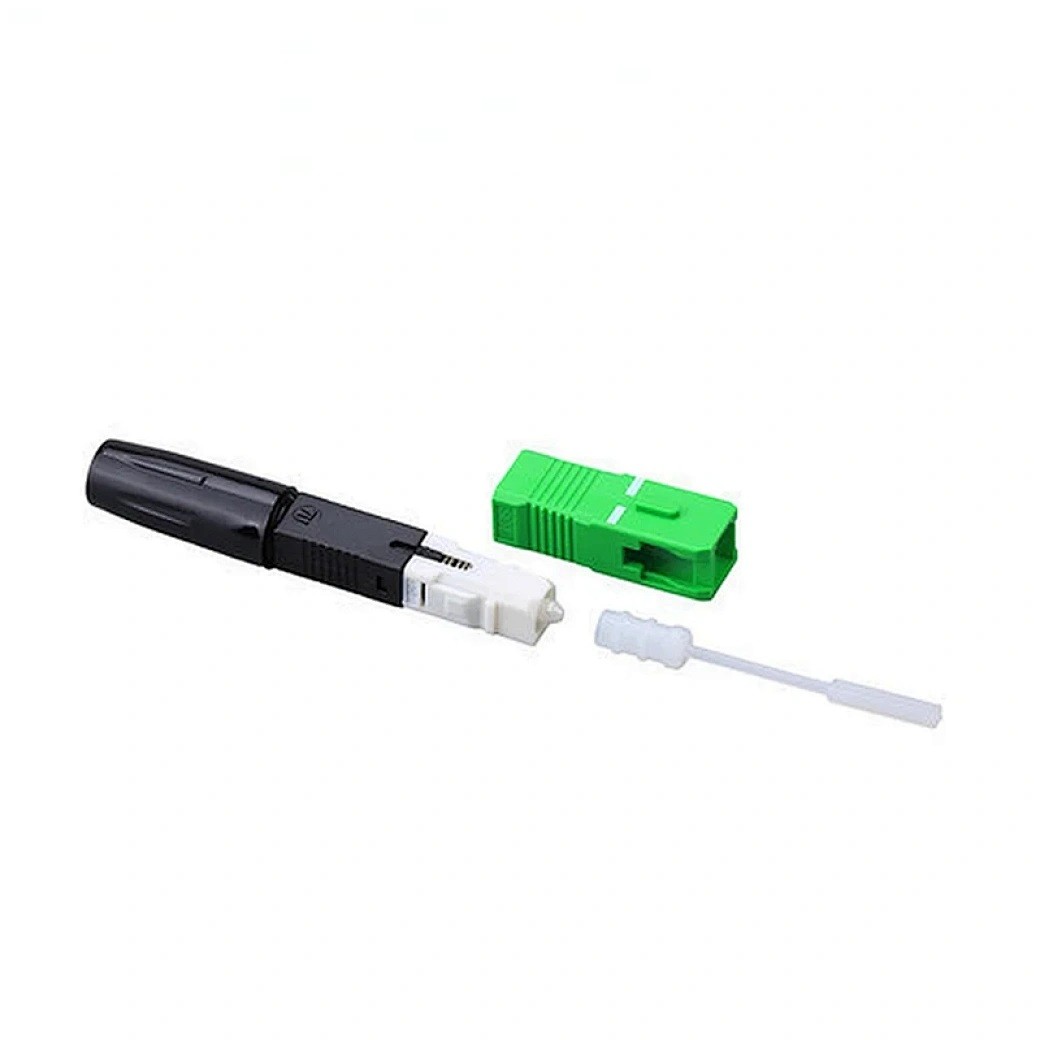

Adopted fiber pre-installed structure
Could be reused, and convenient for field installation
Feature:
Orecise mechanical dimensions
Low insertion loss, high return loss
Comply standard of IEC61754-4
ROHS compliant

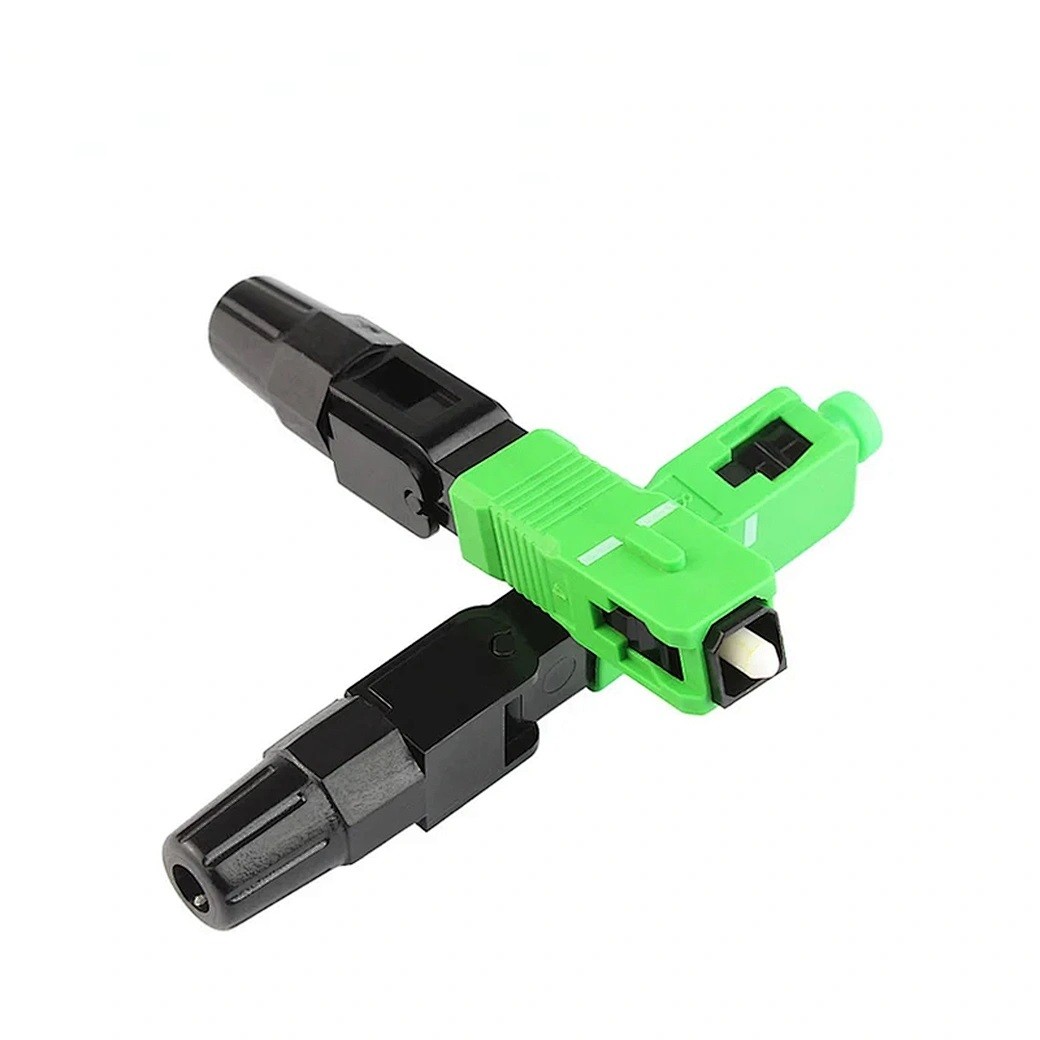

Model No: SC Fiber Optical Connector
Type : Fiber Optic Cable, Optical Fibers, Fiber optic components
Item : SC/APC fast connector
Insertion loss : UPC<0.2dB, APC<0.3dB
Material : Plastic or steel
Polishing : APC, UPC
Use : FTTX
Module : SM, MM
