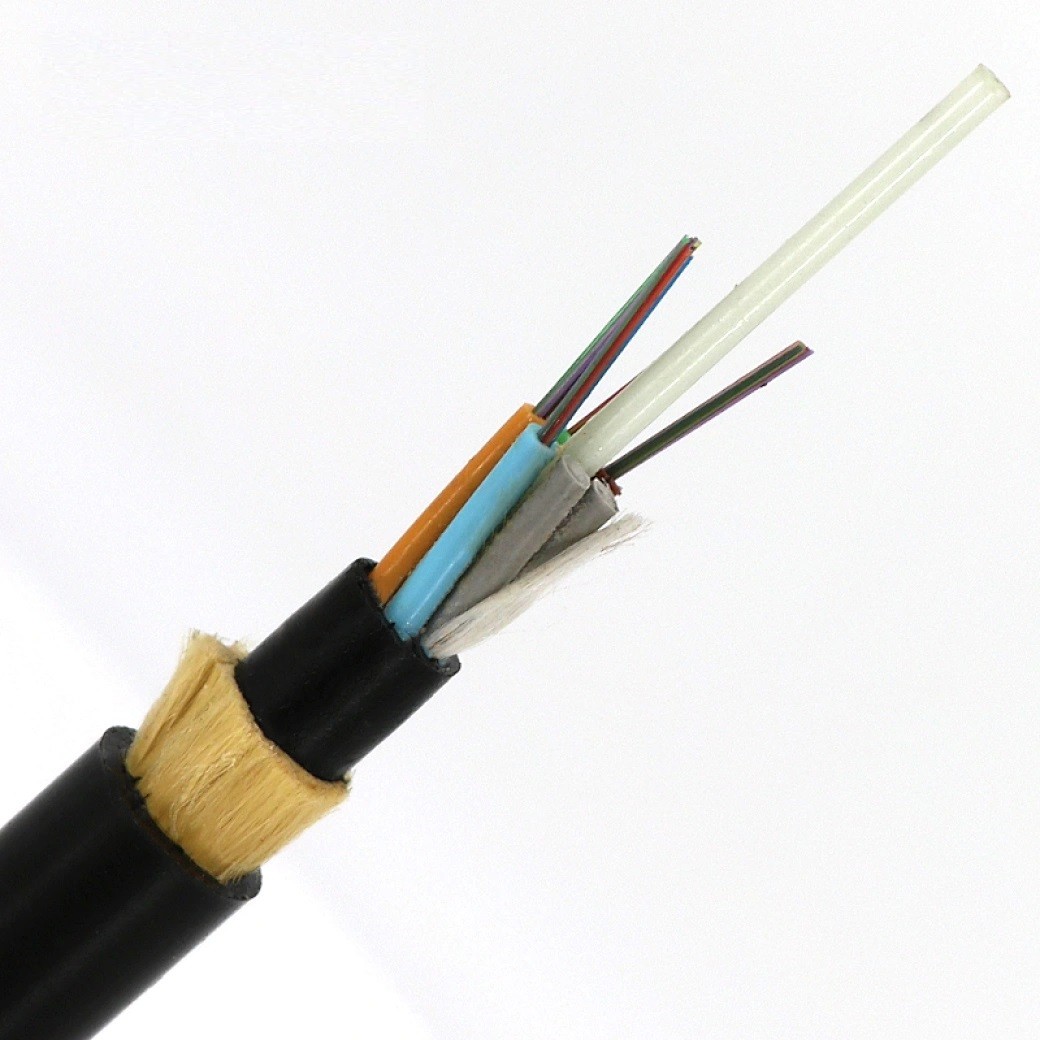

ADSS Fiber Optic Cable 12core 48core 72core Single Sheath with PE JacketAdss Fiber Optic Cable SpecificationsADSS Fiber Optic Cable is made of non-metallic material and self-supporting with the aerial power
transmission line. The tension resistance material is aramid yarn with high elasticity modules. And
optimizing structure can deploy the weight of the cable and its mechanical and physical properties

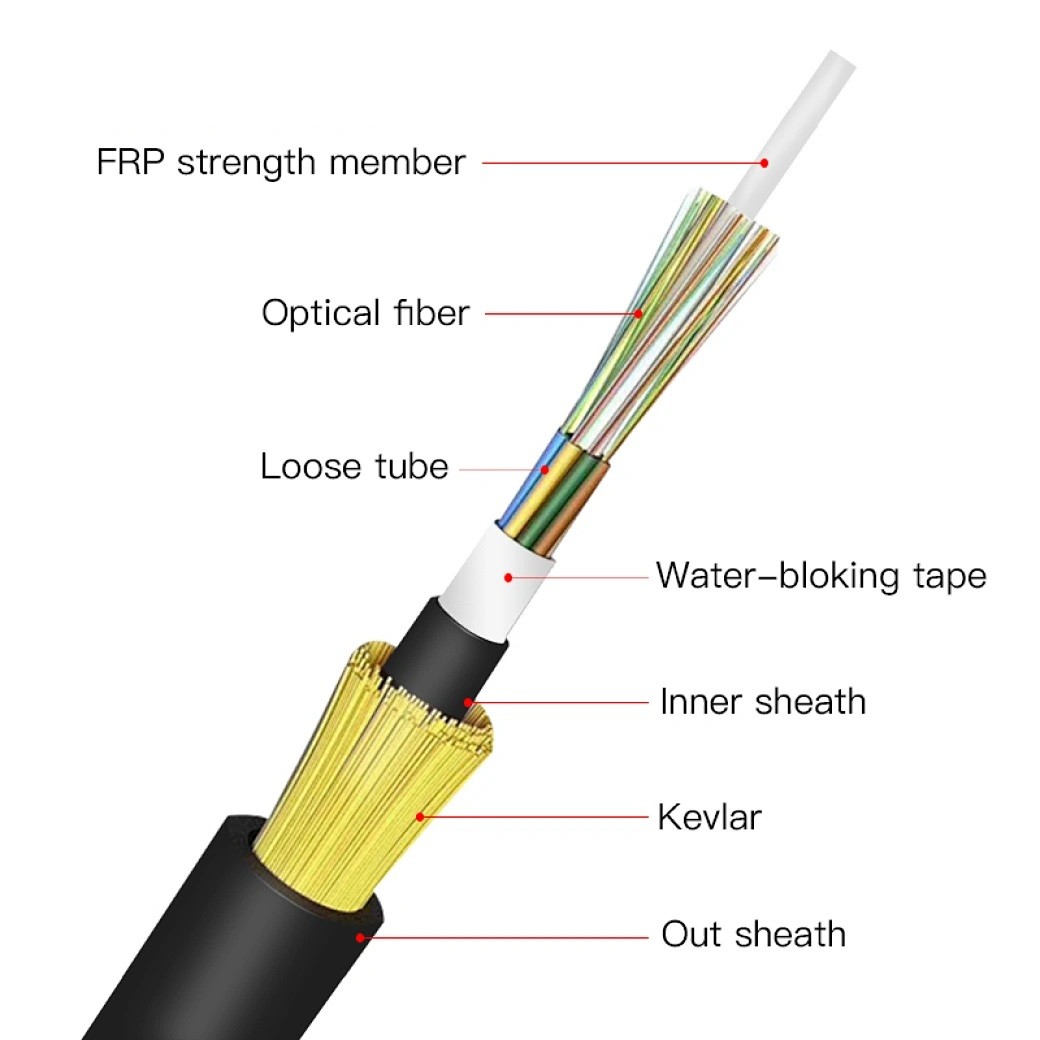

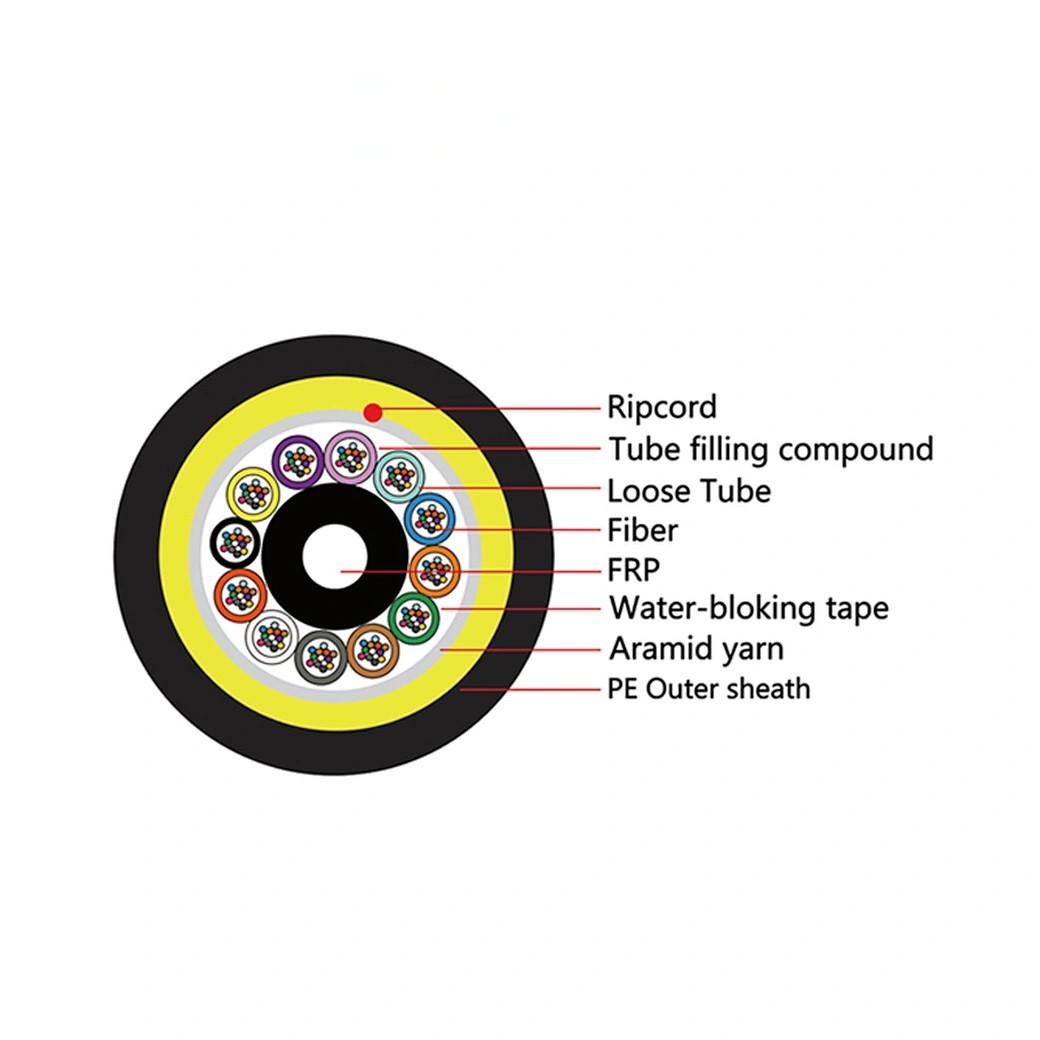

appropriately and minimize the load on the tower. Loose tube construction, tubes jelly filled, elements
(tubes and filler rods) and water blocking yarn laid up around non-metallic central strength member,
polyester yarns used to bind the cable core, water blocking tape longitudinally wrapped around the
cable core, thenaramid yarn reinforced and PE outer sheath.
Features
Can be installed without shutting off the power.
Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and
backprops.
Large span lengths and the largest span is over 1000m.
Good performance of tensile strength and temperature.
The design life span is 30 years.
Characteristic
Optimum cable structure, high fibre density.
Accurate fibre length balance, ensure stable performance.
No gel in cable core for water blocking, low carbon and environmental friendly.
Structure Innovation in sheath, enhancing the blowing performance.
Proven loose tube design for performance
Small diameter, lightweight and low friction sheath design
Excellent blowing length and fast, safe and cost effective installation
Drycore design for excellent water blocking performance and easier handling
SZ stranding design allows for easy mid-span access and isolates fibers from installation
and environmentalrigors
Easy installation and removal when necessary
Application
FTTH Network GPON, EPON.
Rural communication
Local trunk line
CATV
Computer networks system
