CENTRAL LOOSE TUBE LIGHT-ARMORED OPTICAL FIBER CABLE
OEM Available GYXTW Single Mode Fiber Optical Cable Outdoor Communication Use

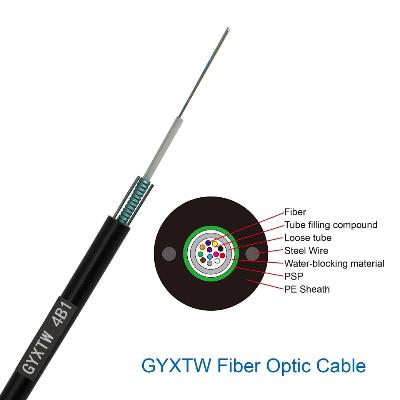

The structure of GYXTW optical fiber cable 250µm fiber is positioned in a loose tube made of high modulus material,
and the loose tube is filled with waterproof compound, he tube is wrapped with a layer of corrugated steel tape
longitudinally, between the corrugated steel tape and the loose tube water-blocking material is applied to keep the
cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, the cable is
completed with a polyethylene (PE) sheath.
Features for gyxtw fiber optic cable
① Excellent mechanical property and temperature performance.
② Loose tube material has good hydrolysis resistance and higher intensity.
③ Two parallel steel wires ensure tensile strength.
④ Good crush resistangce and flexibility.
⑤ Corrugated steel tape longitudinally covers cable core and provides good crush resistance.
⑥ Small diameter, light weight and easy installation.

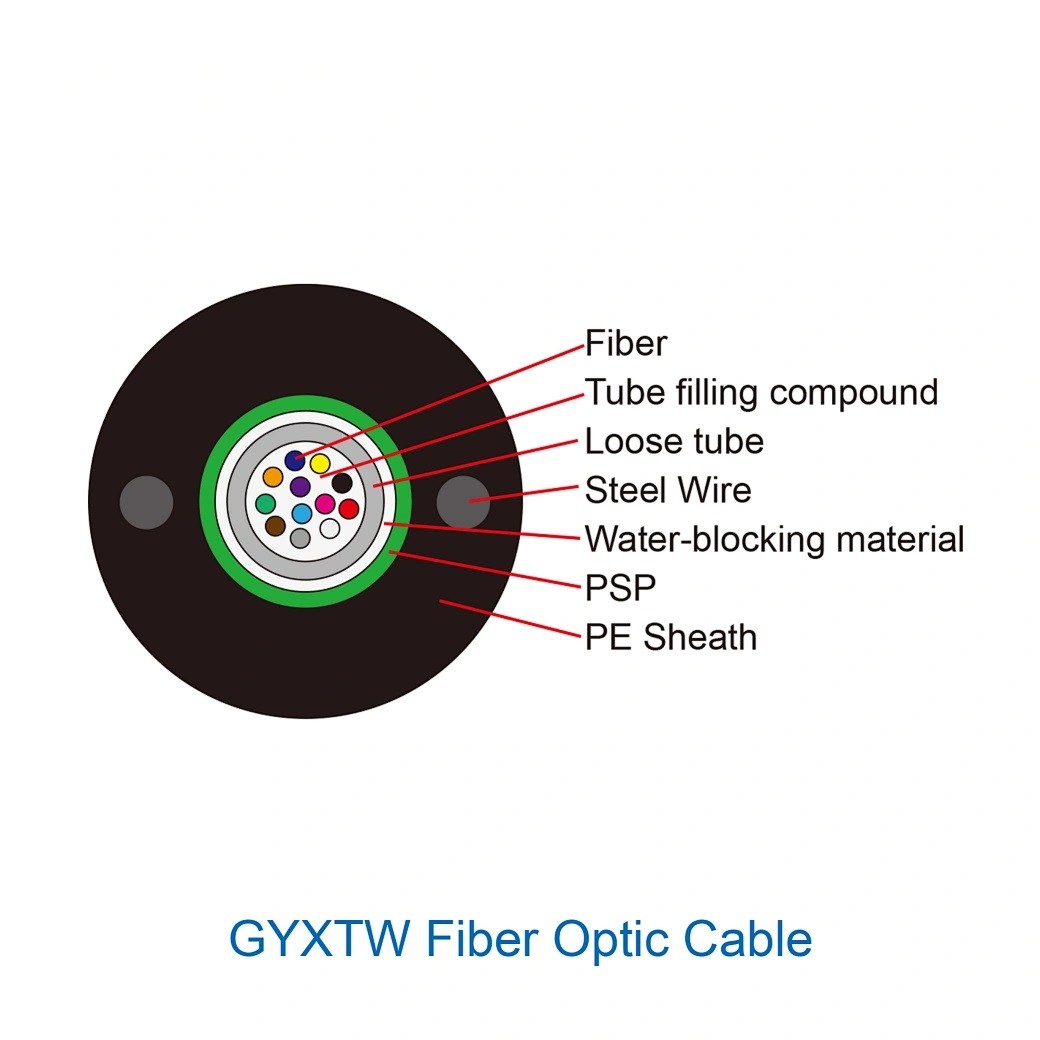

GYXTW Optical Fiber Cable Product Diagram

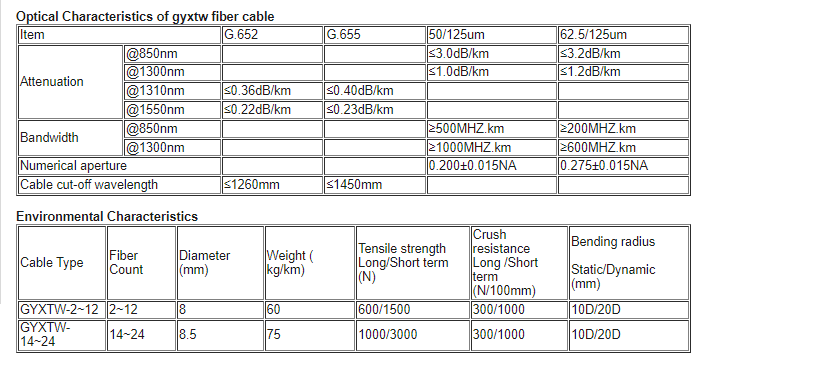

Environmental Characteristics
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃
Standards
Comply with standard YD / T 769, IEC 60794-1 and other standards.
