GYTY53 Underground Optical Fibre Cable 4 Core 12 Core 24 Core
GYTY53 Armored Optical Fiber Cables 4 core 12 core 24 core underground optical fiber cable

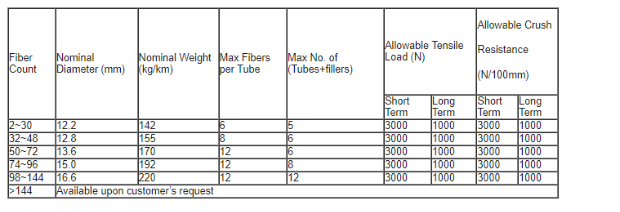

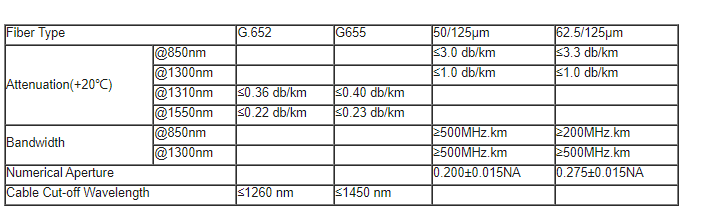

1. GYTY53 Optical Fibre Specification:

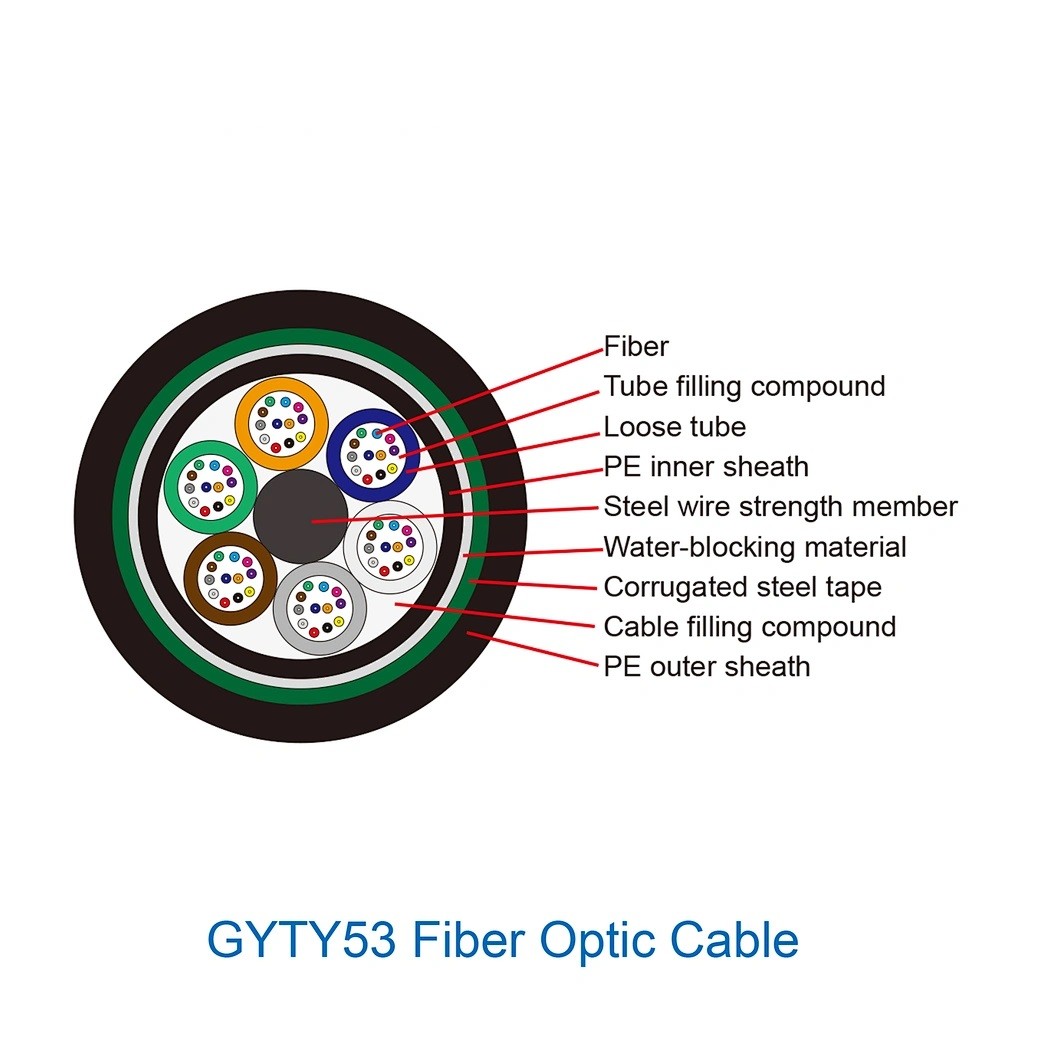

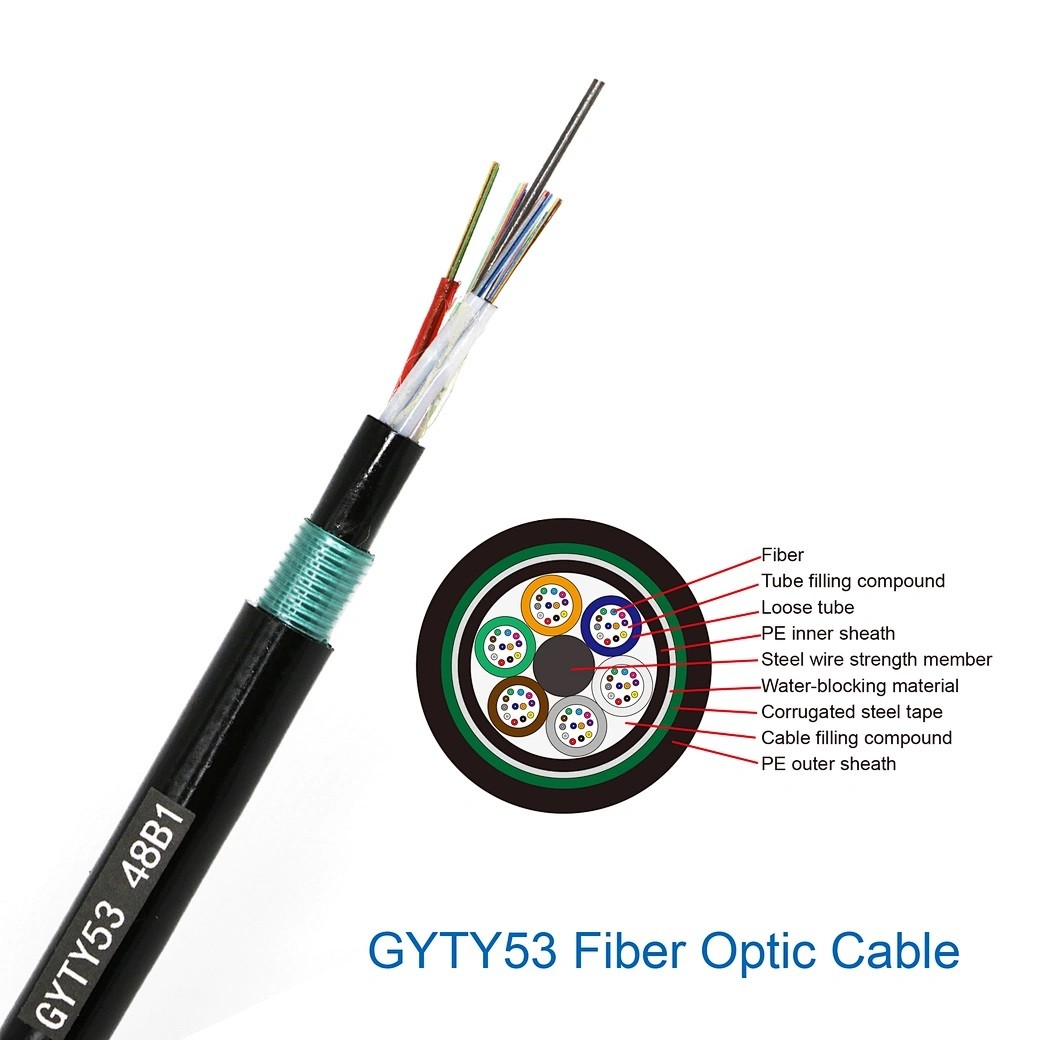

GYTY53 underground fiber optic cable is an outdoor communication optical cable of metal strength member of
the loose tube jelly-filled structure, with polyethylene laminated sheath longitudinally covered with corrugated
steel-tape armored polyethylene outer sheath.The loose tubes are made of high modulus plastics (PBT) and filled
with water resistant filling gel. Loose tubes are tranded around the metallic central strength member, cable core is
filled with cable filling compound. Polyethylene (PE) is extruded as inner sheath, then water swollen yarns and
corrugated steel tape are longitudinally applied over the inner sheath, and combined with a durable PE sheath.
GYTY53
