CENTRAL LOOSE TUBE NON-METALLIC NON-ARMORED OPTICAL FIBER CABLE

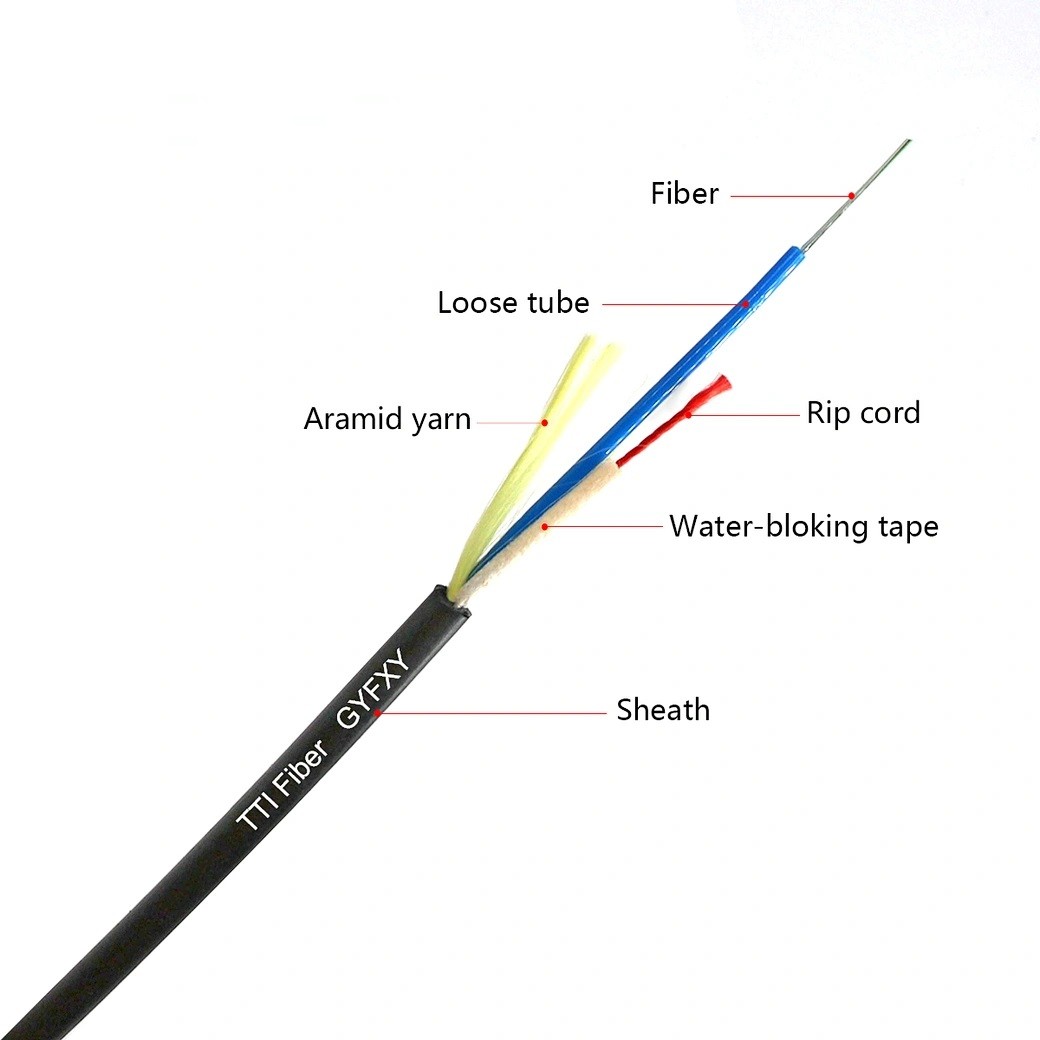

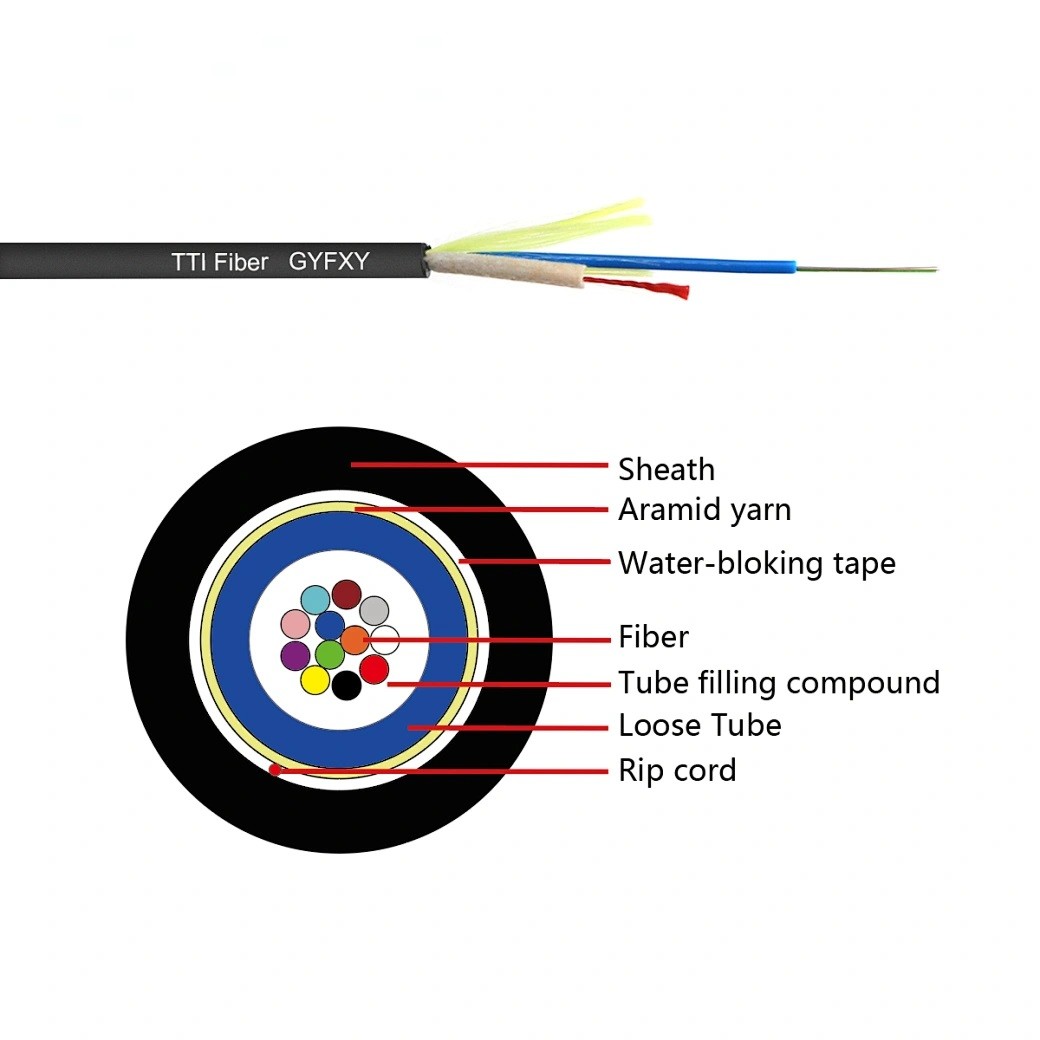

The structure of GYFXY Fiber Optic Cable 250μm fiber is positioned in a loose tube made of high modulus
material, the loose tube is filled with waterproof compound. bater-blocking material is applied to keep the
cable watertight, and two parallel glass fibers are placed on both sides Reinforced plastic (FRP) extruded
polyethylene (PE) sheath into cables.
G652d Fiber Optic Cable Features
①Excellent mechanical property and temperature performance.
②Loose tube material have good hydrolysis resistance and higher intensity.
③Two parallel FRP ensure tensile strength.
④Good crush resistangce and flexibility.
⑤PE sheath protects cable from ultraviolet radiation.
⑥Small diameter, light weight and friendly installation.
Environmental Characteristics
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃
Standards
Comply with standard YD / T 7691, IEC 60794-1 and other standards
