12 24 48 96 144 Cores GYFTY53 Loose Tube Laye Staranded Non-Metallic Reinforced Core Light Armored Fiber Opitc Cable

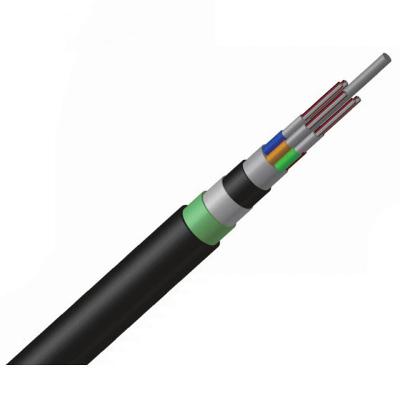

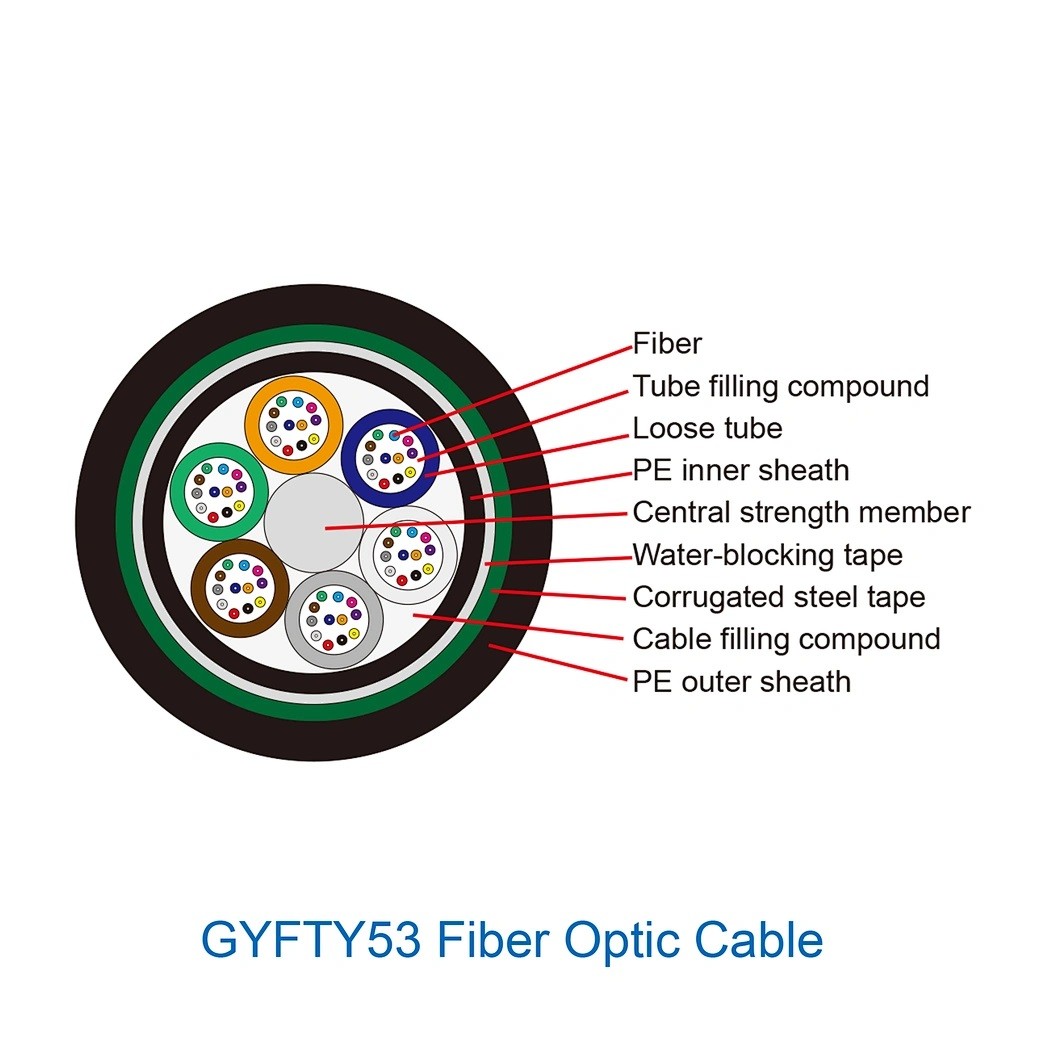

The structure of GYFTY53 optical fiber cable is a 250um fiber placed in a loose tube made of high modulus material,
which is filled with a waterproof compound. The center of the cable core is a metallic Fiber Reinforced Plastic (FRP)，
for some cores fiber cable, a layer of polyethylene (PE) needs to be extruded outside the metallic central strength
member. The loose tubes (and fillers) are stranded around the central reinforcing core to make a compact and
rounded core, and the gaps inside the core are filled with water-resistant material. The core is extruded with a
layer of polyethylene inner sheath, and a double-sided corrugated steel tape (PSP) is wrapped longitudinally
and then extruded with a polyethylene sheath to form the cable.
