GYTXW GYTC8S GJFJV GJXH GJXFH Fiber Optical Cable G652D G657A1 G657A2
4 6 8 12 24 48 72 96 128 288 Core Fiber Optical Cable
Outdoor Fiber Specification:
Single mode or multimode fibres are position in a loose tube made of a high modulus plastic.The tube are filled
with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high
fiber count,locates in the center of core as a metallic strength member.Tubes (and fillers) are stranded around the
strength member into a compact and circular cable core.the cable core is filled with filling compound to protect it
from water ingress,over which a thin PE inner sheath is applied.After the PSPis longitudinally applied overthe inner
sheath, the cable is completed with a PE sheath.
Application:
1. Long-distance communication.
2. It's suitable for duct, especially for the places with high requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aeri

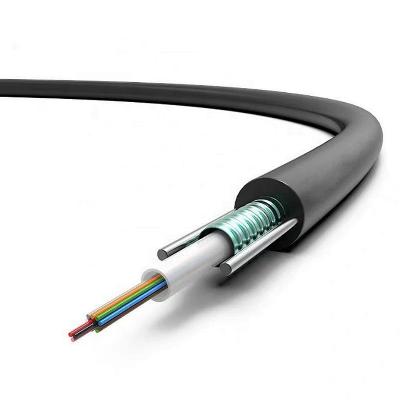

Fiber Optical Cable Product Picture:
