OS1 Simplex Outdoor Singlemode Fiber Optic Cable with PVC Jacket
OS1 Fiber Optic Cable Characteristics:
Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
Good performance of flame-retardant
Low induced attenuation within the operating temperature range
Excellent geometrical dimension of the Fiber Optic Cable.
Single Mode Multi Mode Fiber Application:
Data communication
Making connector
Installation: riser, plenum, etc.
Places where waterproof is not strictly required
Fiber Optic Cable Making jumper, pigtail and building distribution
Description:

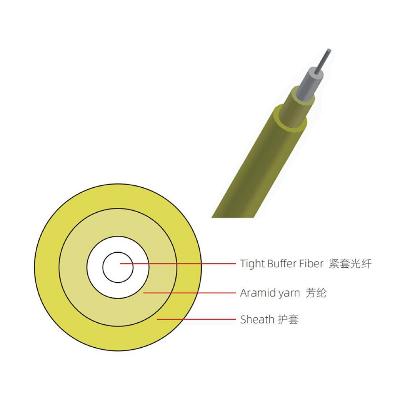

Fiber Optic Cable 1fiber, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, LSZH Jacket.
Standards:
Comply with Standard YD/T 1258.2-2003, ICEA-596, GR-409, IEC794, etc.
Meet the requirements of UL approval for OFNR and OFNP.
Specification:

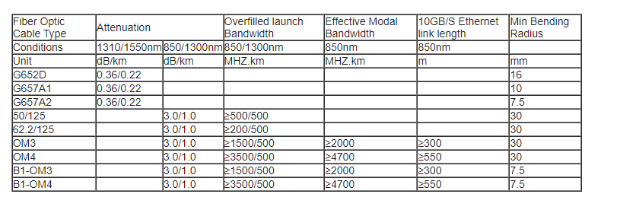

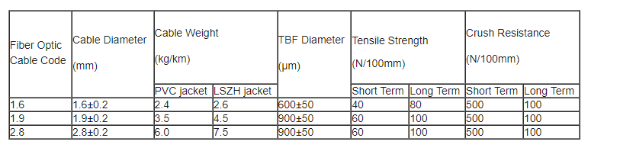

Structure and Technical Specification:
Product Picture:singlemode fiber optic cable
Model No: FOC-SX
Cable Type : Outdoor Fiber
Type : SM/MM
Cable Core : SX, DX
Cable Jacket : PVC/LSZH/OFNR/OFNP/PE
Structure : Simplex
Cable Color : Orange, Yellow, Aqua, Purple, Violet Or Customized
High Light : single mode fiber optic cable, armored fiber cable, Singlemode PVC Jacket Fiber Optic Cable
