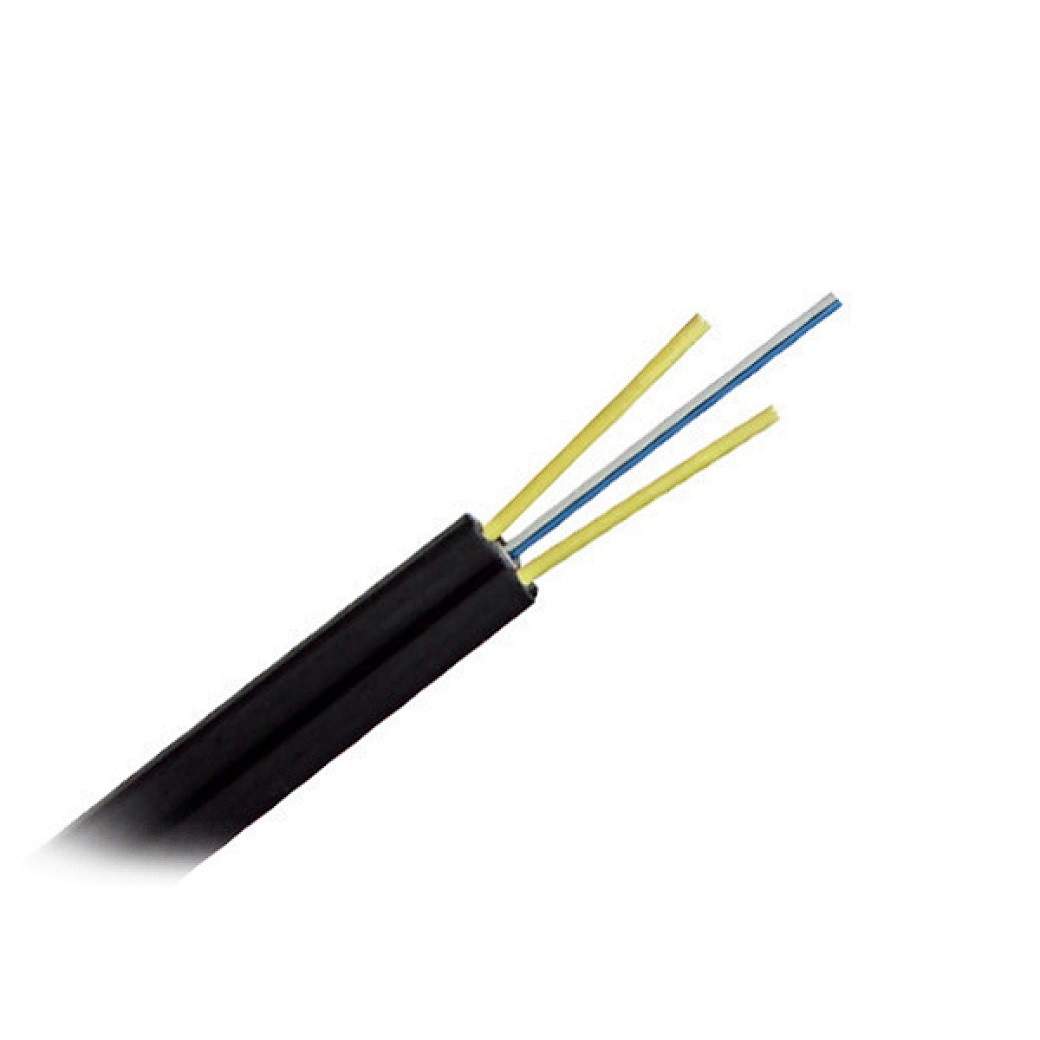

4core 12core FTTH Drop Cable with KFRP and Steel for SC Fast Connector
Ftth Optical Drop Cable Description:
Easy connect without splicing, fast and convenient
Excellent tensile and crush performance, the span distance for self-support type can be up to 50 meters
Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment
High carbon steel messenger wire enables the self-support type to have excellent tensile strength.
FTTH Network Drop Cable Feature:
Fiber:Up to 12, Light buffered fiber
Fiber Types: Single-mode or Multimode
Cable Type: Round Squa drop cable
Strength Member:Aramid yarn
Sheath Options:Single LSZH sheath
Operating Temperature: -20℃ - 70℃
Compliances:In Accordance with IEC,ITU and EIA standards
Outdoor Ftth Drop Cable Application:
High speed optical routes in buildings (FTTx)
All types of fiber cables with different structures
High performance optical network operating
Used in indoor/outdoor cabling
Used in indoor/outdoor cabling

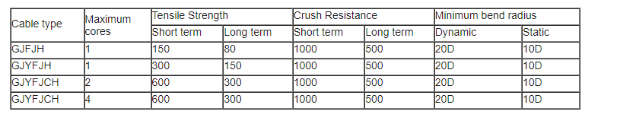

Specification:

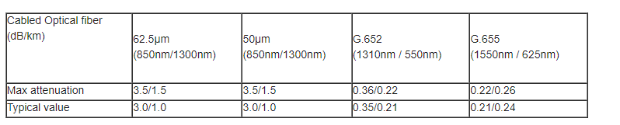

Fiber Transmission Performance:
Technical Specification
Model No: FTTH - 4C
Fiber Type : G652D G657A1 G657A2
Cable Core : 2/4/6/8/12 Core
Fiber Mode : OS1 OS2 OM1 OM2 OM3
Cable Jacket : LSZH
Usage : Indoor Outdoor
Strength : FRP KFRP Steel
Cable Color : White Black
High Light : fiber optic drop cable, fiber drop cable
