GJYXHS G652D G657A1 G657A2 50/125 62 5/125 OM3 OM4 Duct Drop Fiber Optic Cable

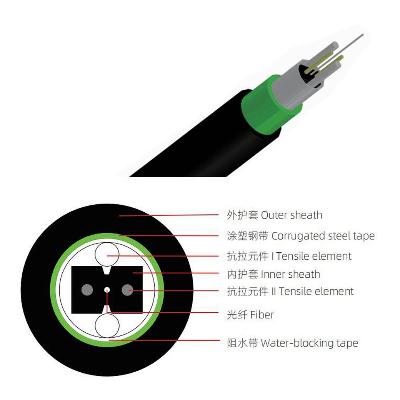

GJYXHS duct drop cable for duct is placed in the center of the optical communication unit, and two parallel non-metallic
reinforcing elements (FRP) are placed on both sides to extrude a black low-smoke halogen-free sheath.The corrugated
steel tape with a moisture barrier and the PE sheath is finally extruded.
Features for om4 multimode fiber
①Special bend resistant optical fiber provides greater bandwidth and enhances network transmission characteristics.
②Two parallel strength memebr make the optical cable have good compressive performance and protect the optical fiber.
③The optical cable has the advantages of simple structure, light weight and strong practicability.
④Unique groove design, easy to peel, easy to connect, simplify installation and maintenance.
⑤Low smoke halogen-free flame retardant sheath, environmental protection.
⑥PE outer sheath has good UV resistance.
⑦Corrugated steel tape longitudinally covers cable core and provides good crush resistance.
GJYXHS Product application
①optical fiber cable introduced from outdoor to indoor in access network or user resident network.
②Building lead-in optical fiber cable in generic cabling, especially the wiring when indoor or outdoor overhead lead-in.
