Outdoor FTTH 16 Core Empty Full loaded Fiber Optic Distribution Box ABS Material

Outdoor FTTH distribution 16 Core Fiber Optic Distribution Box

Fiber Optic Distribution Box

Fiber access distribution box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Fiber Optic Distribution Box

Outdoor Fiber Distribution Box Feature:

Water-proof design with IP-65 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1 pcs of 1*16 Fiber Optic Pigtails can be installed as an option.
Efficient cable management. 16 ports cable entrance for drop cable.

Application:

CATV Network

FTTH access network

Telecommunication network

Data communication network

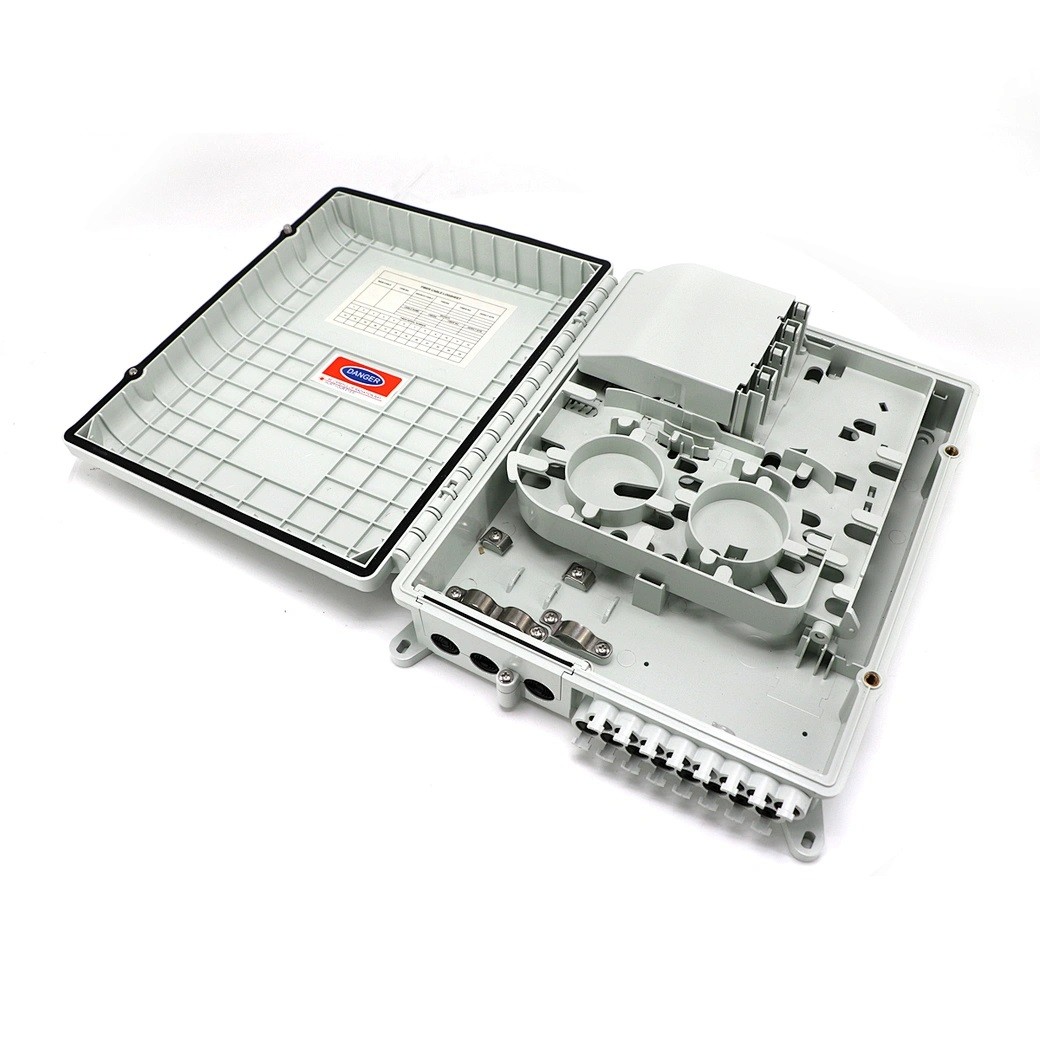

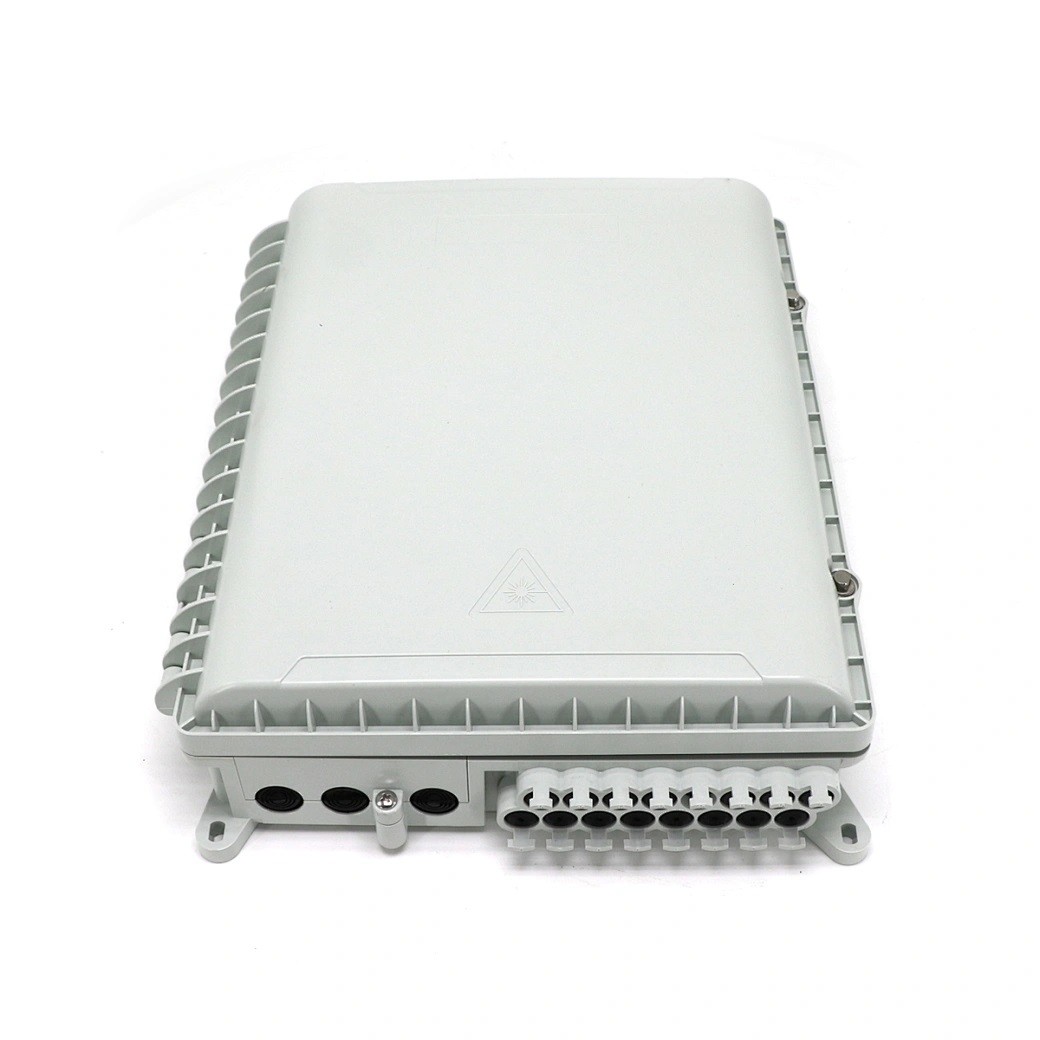

Pictures Of Fiber Optic Distribution Box：
