G657A1 G657A2  PLC Fiber optic splitter With SC Connector Fast Installation

Description:
PLC Fiber optic splitter is a micro-optical element using photolithographic techniques to form optical waveguide
at medium or semiconductor substrate for realizing branch distribution function.
Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32 and 1x64 configurations with
single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC etc.

G 657 A1 Fiber Feature:
Low insertion loss
Low polarization dependent loss
High Return Loss
Optional Split Ratio 20/80, 40/60...(50/50 as default.)
Compact for small application areas like in closure or splice trays
Wide Operating Temperature and Wavelength
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Steel tube-compact size

PLC Splitter Application:
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Amplifying, Monitoring System
Test Equipments
Order Information
For FBT Splitters, Fiberstore provides a whole series of this kind customized for specific

Specification:
Table 1 – 1×N PLC Fiber Splitter

Table 2 – 2×N PLC Fiber Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Notes:
Specified without connectors.
Add an additional 0.15dB loss per connector

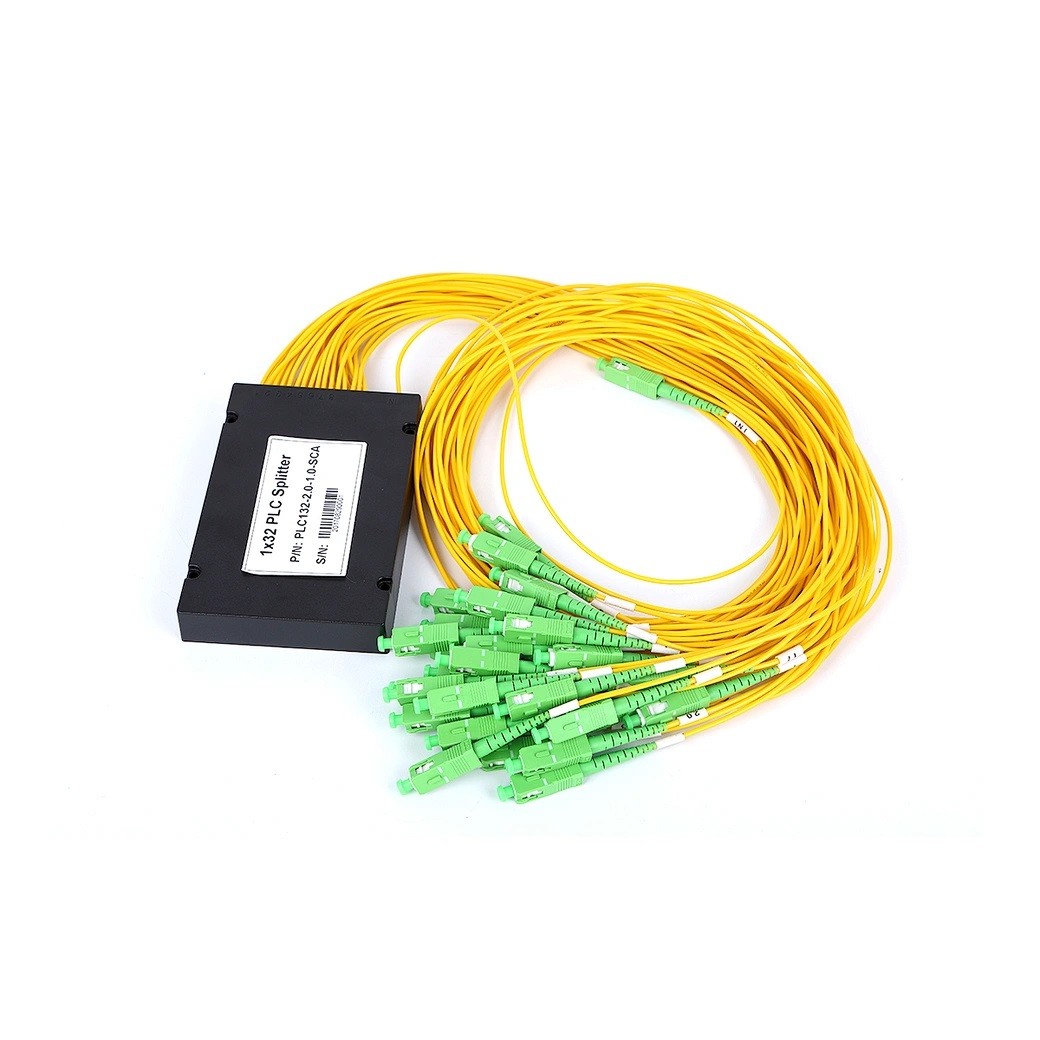

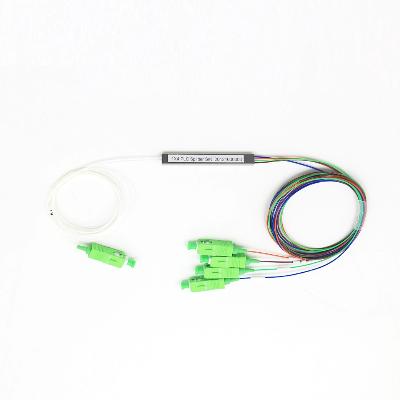

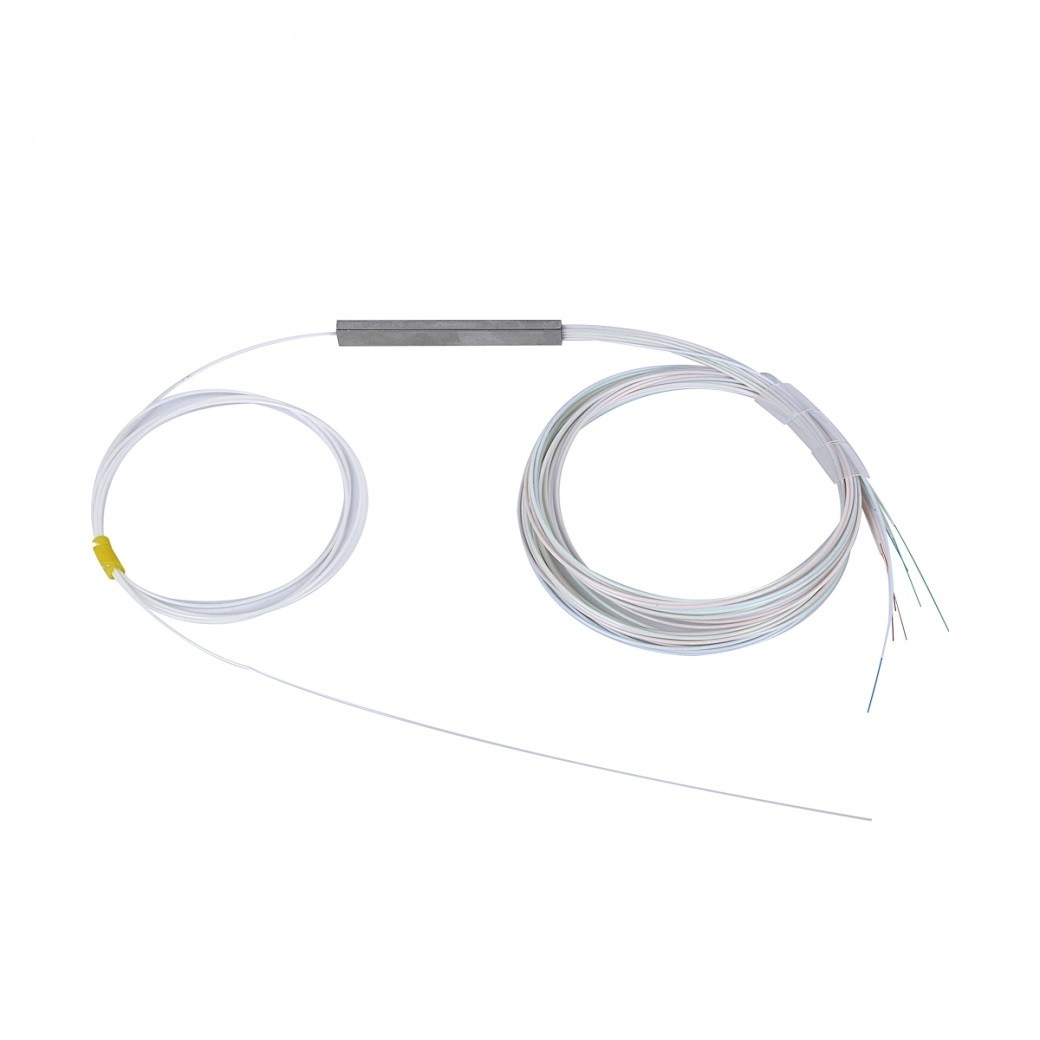

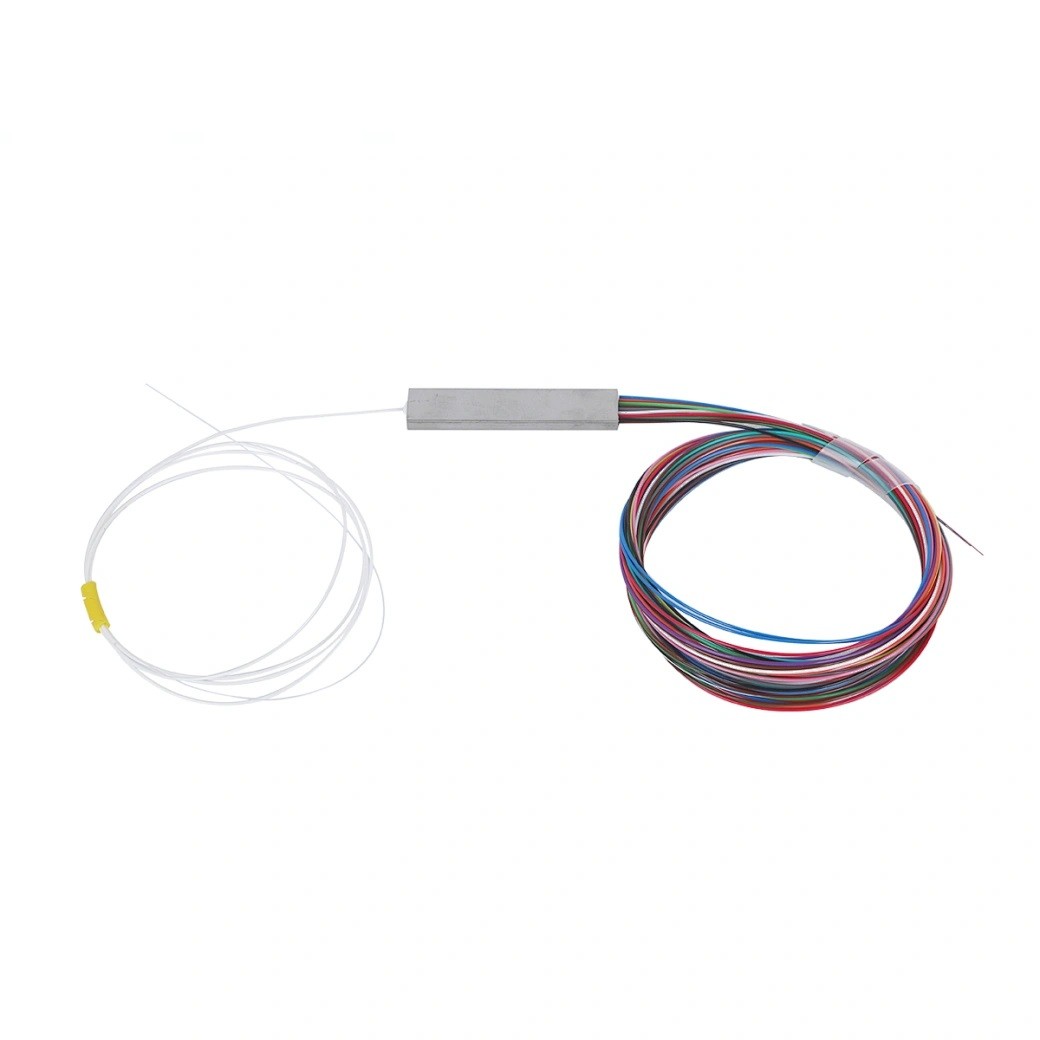

Product Picture:
