MPO (ODVA) - LC / UPC MM OM3 12 Cores 7.0 mm LSZH Black
Type：
Product Feature：

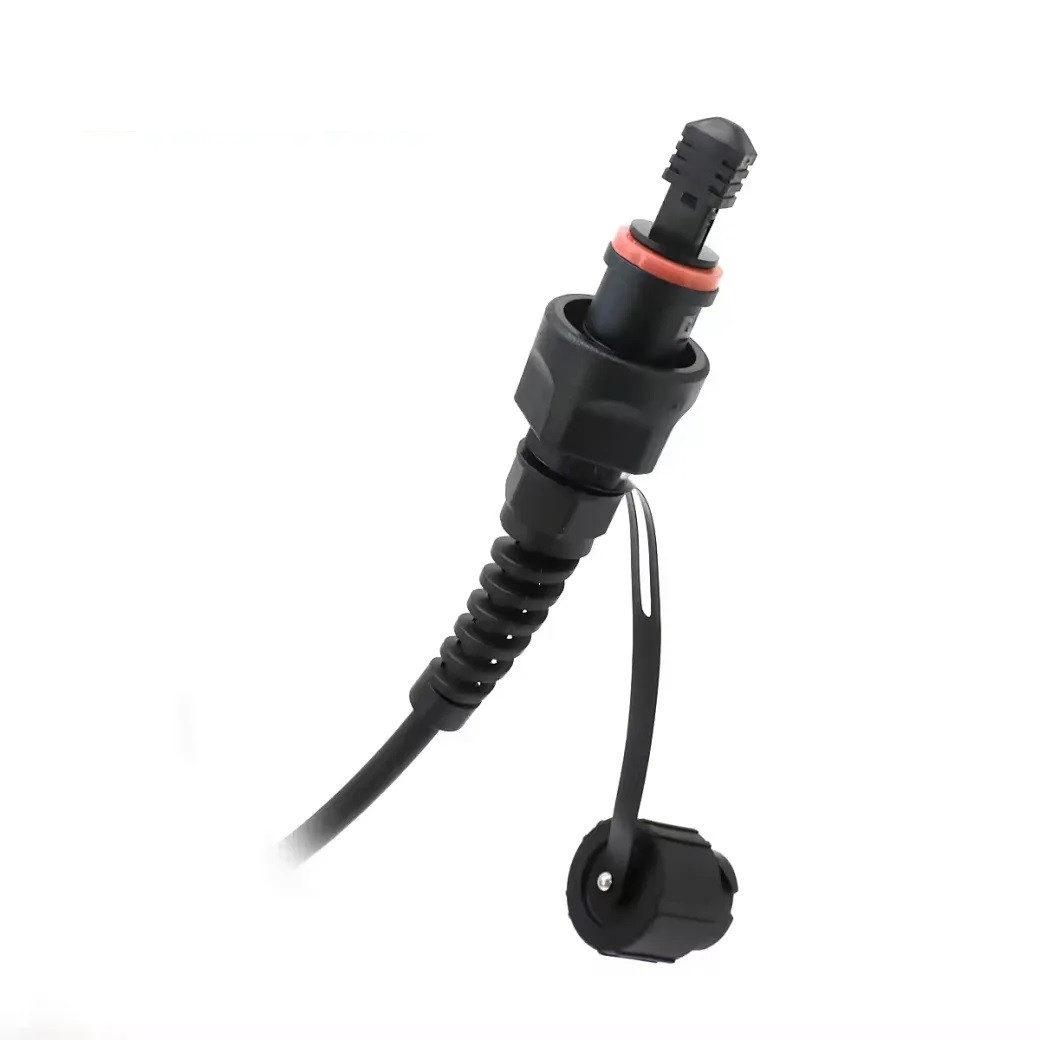

Model No: Waterproof MPO - LC
Application : Telecommunication
Number of Conductors : ≥ 10
Jacket : PVC LSZH LSOH PE HDPE
Connector : SC, LC, FC, ST, MPO, MTRJ
Fiber Type : G652D, G657A1, G657A2, OM1, OM2, OM3, OM4
Ferrule end -face : UPC/APC
Packing : PE Bag
OEM/ODM : Customized
Length : 1m, 2m, 3m, 5m, Customized

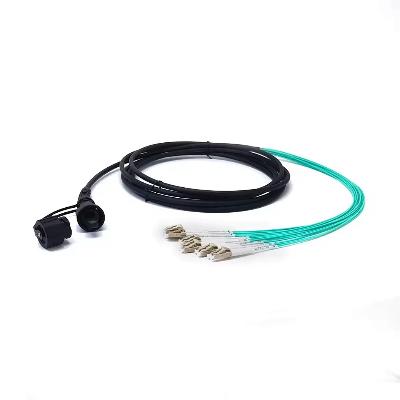

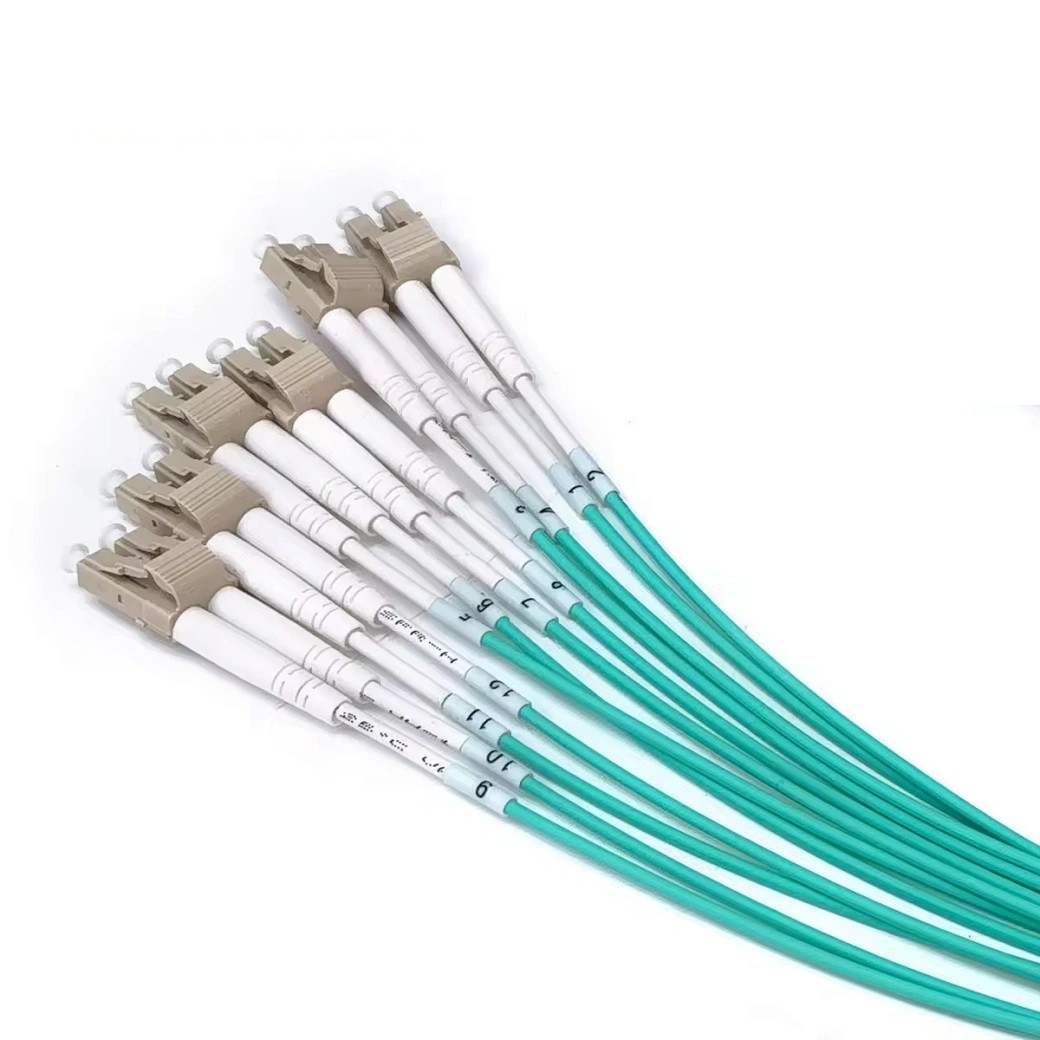

Waterproof Connector ODVA MPO - LC 8 12 16 Core Multi-Mode Fiber Opric Patch Cord
Length TolerancesL | L＜10m | 0≤△L≤+100mm |
10m≤ L ≤50m | 0≤△L≤+100mm |
L＞50m | 0≤△L≤+100mm |

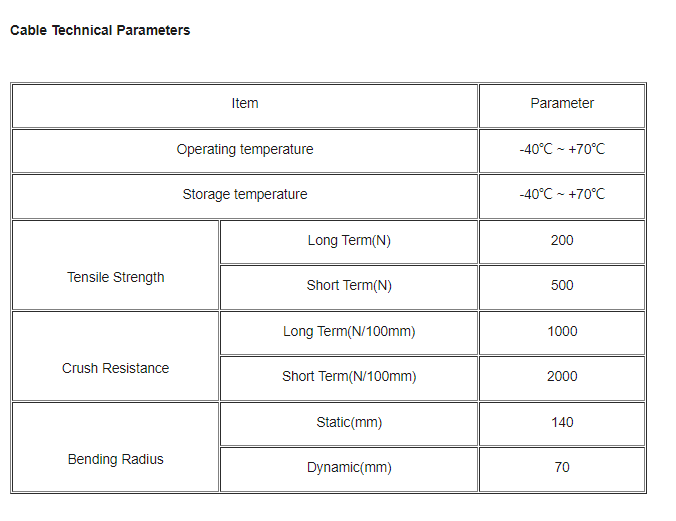

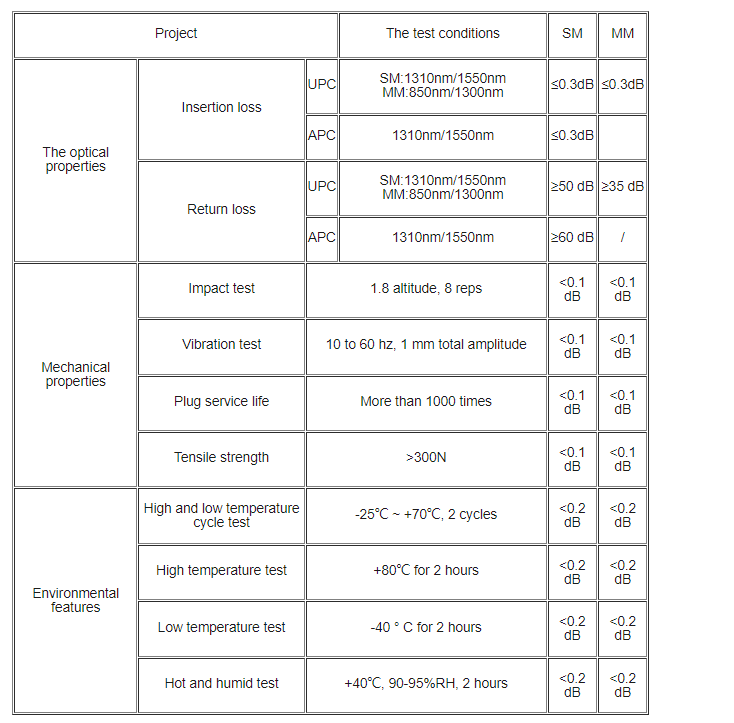

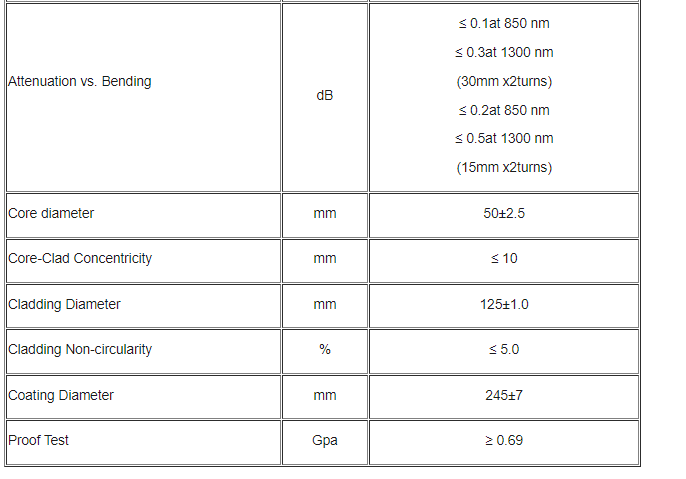

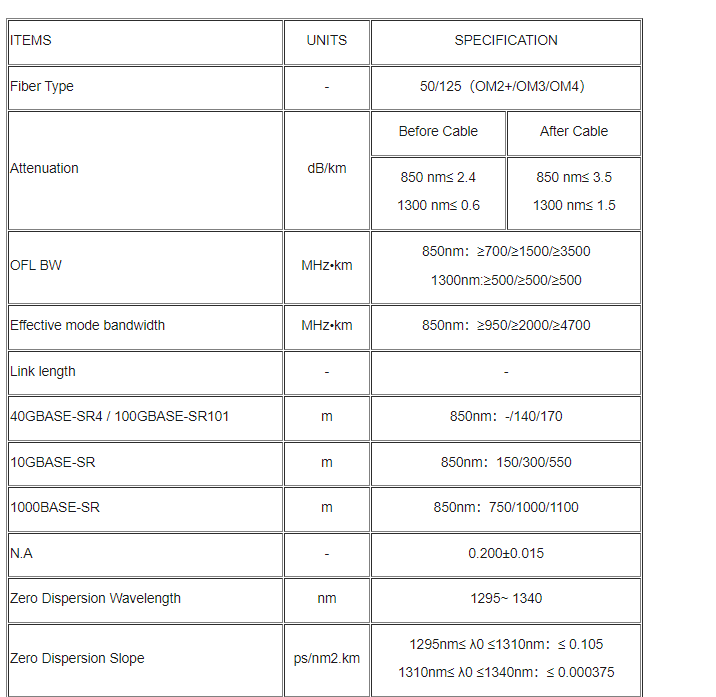

Parameter

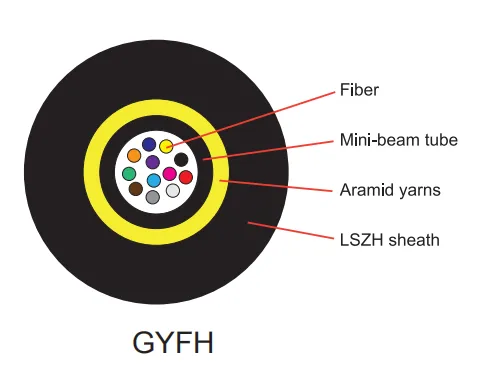

Cable Structure Parameters
Model No: Waterproof MPO - LC
Application : Telecommunication
Number of Conductors : ≥ 10
Jacket : PVC LSZH LSOH PE HDPE
Connector : SC, LC, FC, ST, MPO, MTRJ
Fiber Type : G652D, G657A1, G657A2, OM1, OM2, OM3, OM4
Ferrule end -face : UPC/APC
Packing : PE Bag
OEM/ODM : Customized
Length : 1m, 2m, 3m, 5m, Customized
