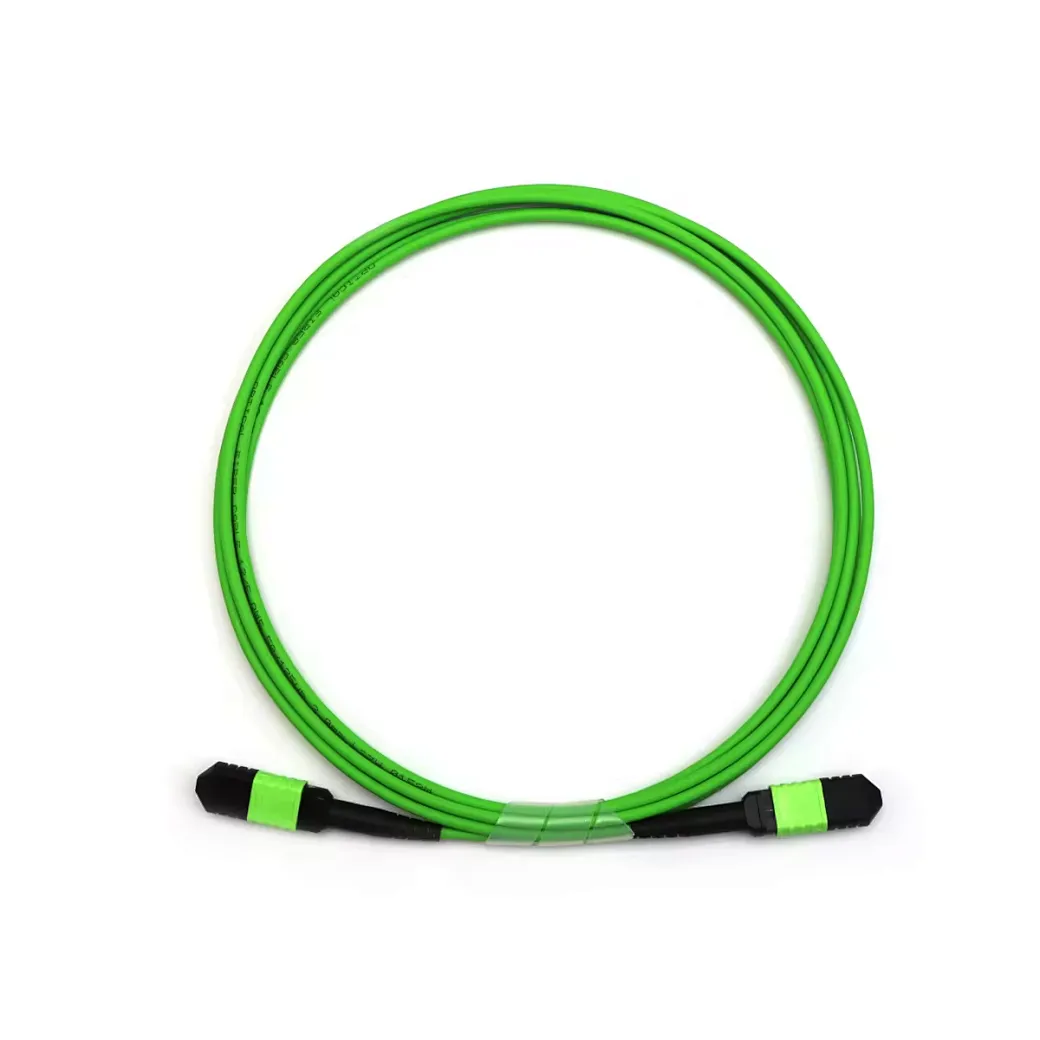

MPO Patch Cord Multimode Fast Transmit Speed High Density OM3 OM4 OM5 Fiber Optic Patch Cord
Overview
Introduce
MPO fiber optic patch cord, MPO (Multi-fiber Push On) connector is one of the MT series connectors. The MT
series ferrules use two guide holes with a diameter of 0.7mm on the left and right sides of the ferrule end face
and guide pins (also called PIN pins) for precise connection.The compact design of the MPO connector makes
the MPO patch cord have more cores and smaller size. MPO patch cords are widely used in the wiring process,
where high-density integrated optical fiber lines are required, and in FTTX, 40/100GSFP, SFP+ and other
transceiver modules or internal and external connections of equipment.
Application
1.LAN cabling between different buildings of an enterprise
2.Optical link interconnection in optical active equipment
3.Wiring in communication base stations, wiring in distribution boxes
4.Optical signal connection in residential areas, industrial park computer rooms, and commercial building
computer rooms
5.Building dense cabling systems
6.Fiber optic communication systems, cable TV networks, telecommunication networks
7.Local area networks (LANs), wide area networks (WANs), FTTx

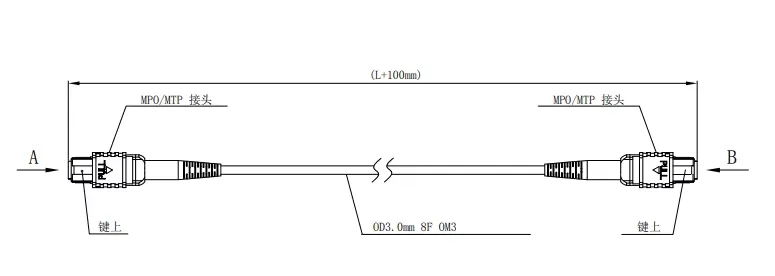

Connector Specifications
8core Advantage
1. Fiber utilization: In situations where higher fiber utilization is required, 12-core MPO may be a better choice,
especially when higher data transmission rates are required.
2. Scalability: Although the cost may be slightly higher than 8-core MPO, 12-core MPO provides more expansion
space in case of future expansion or upgrade.
