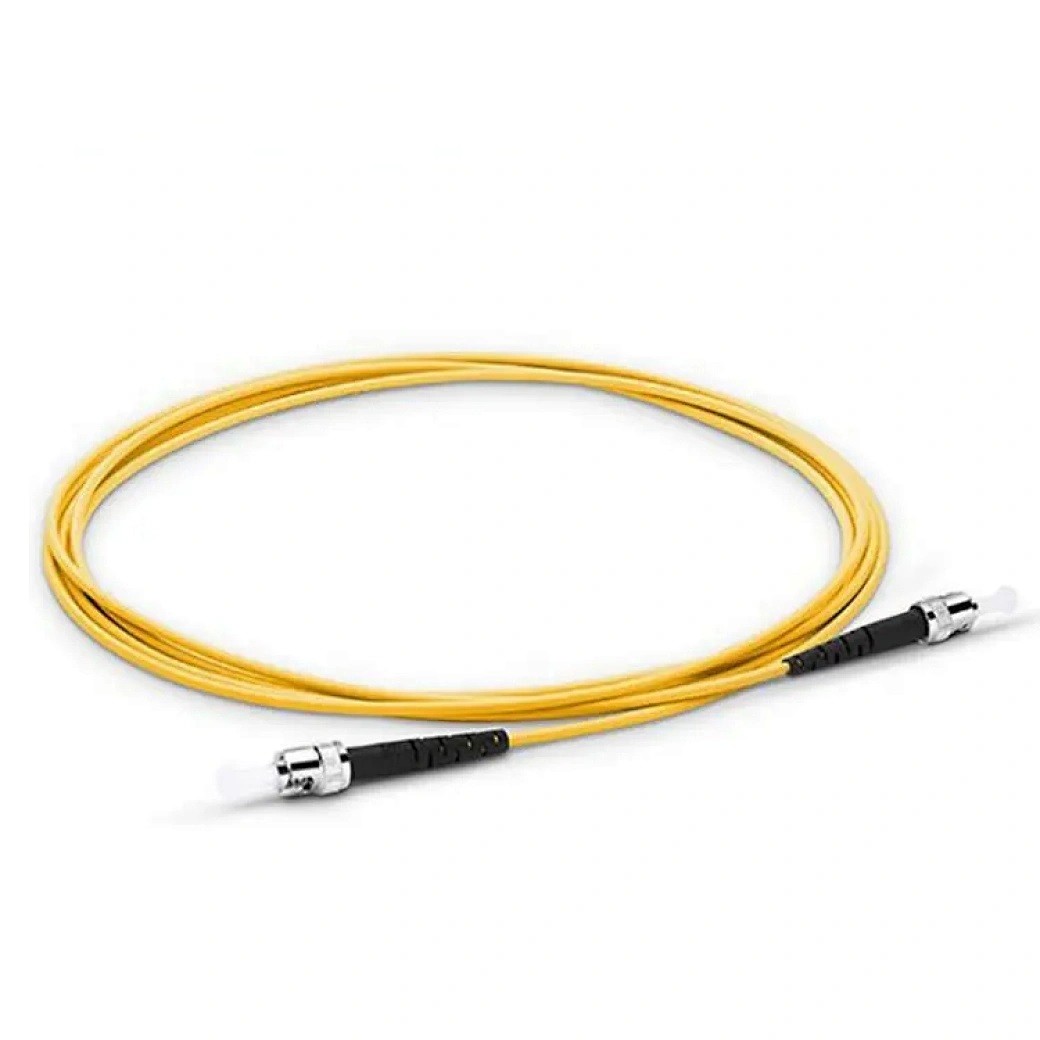

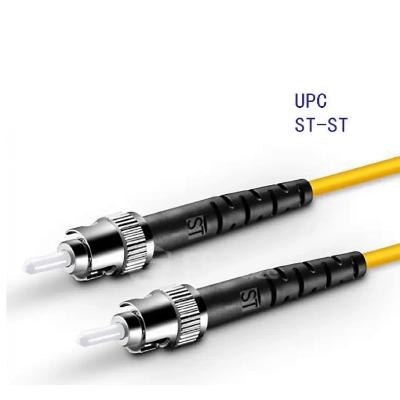

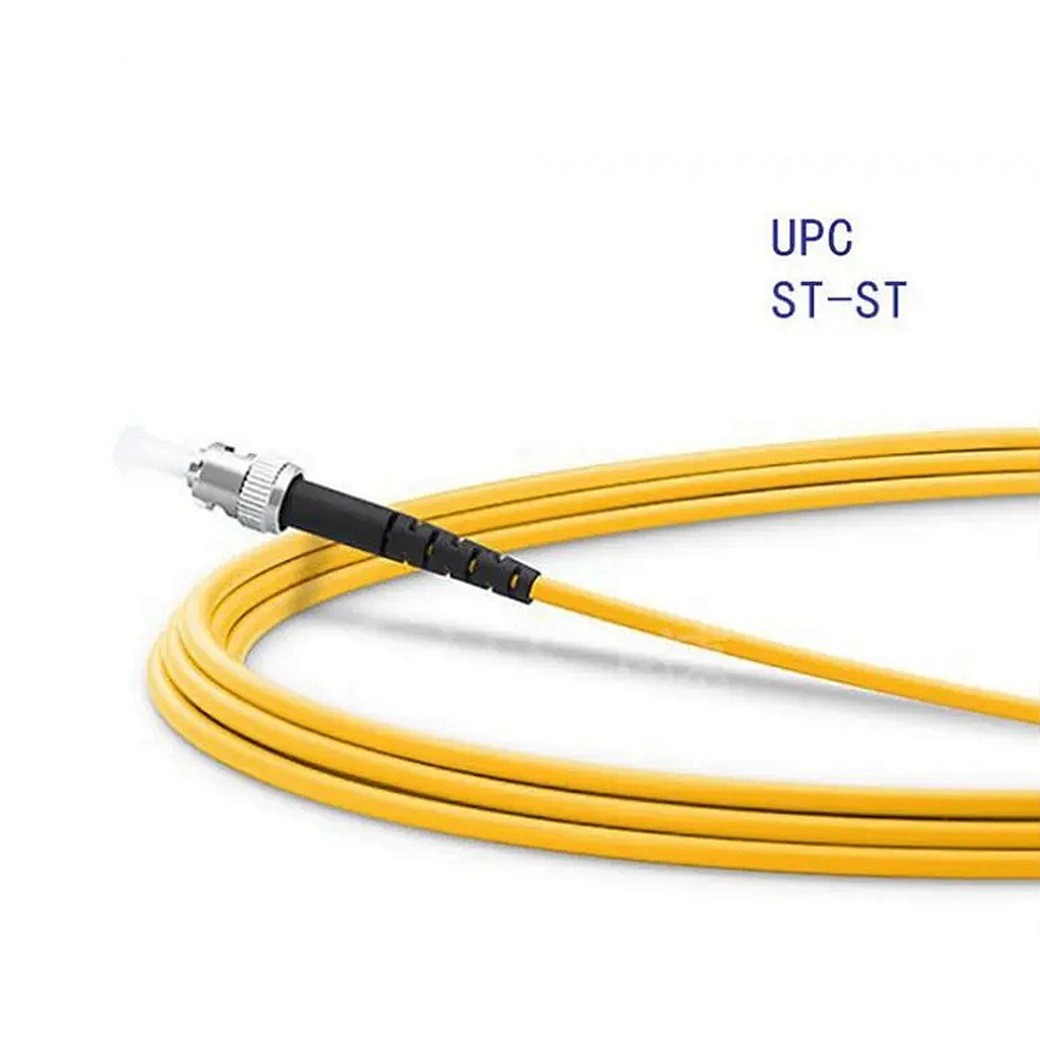

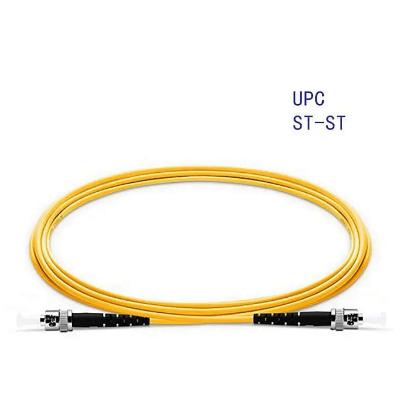

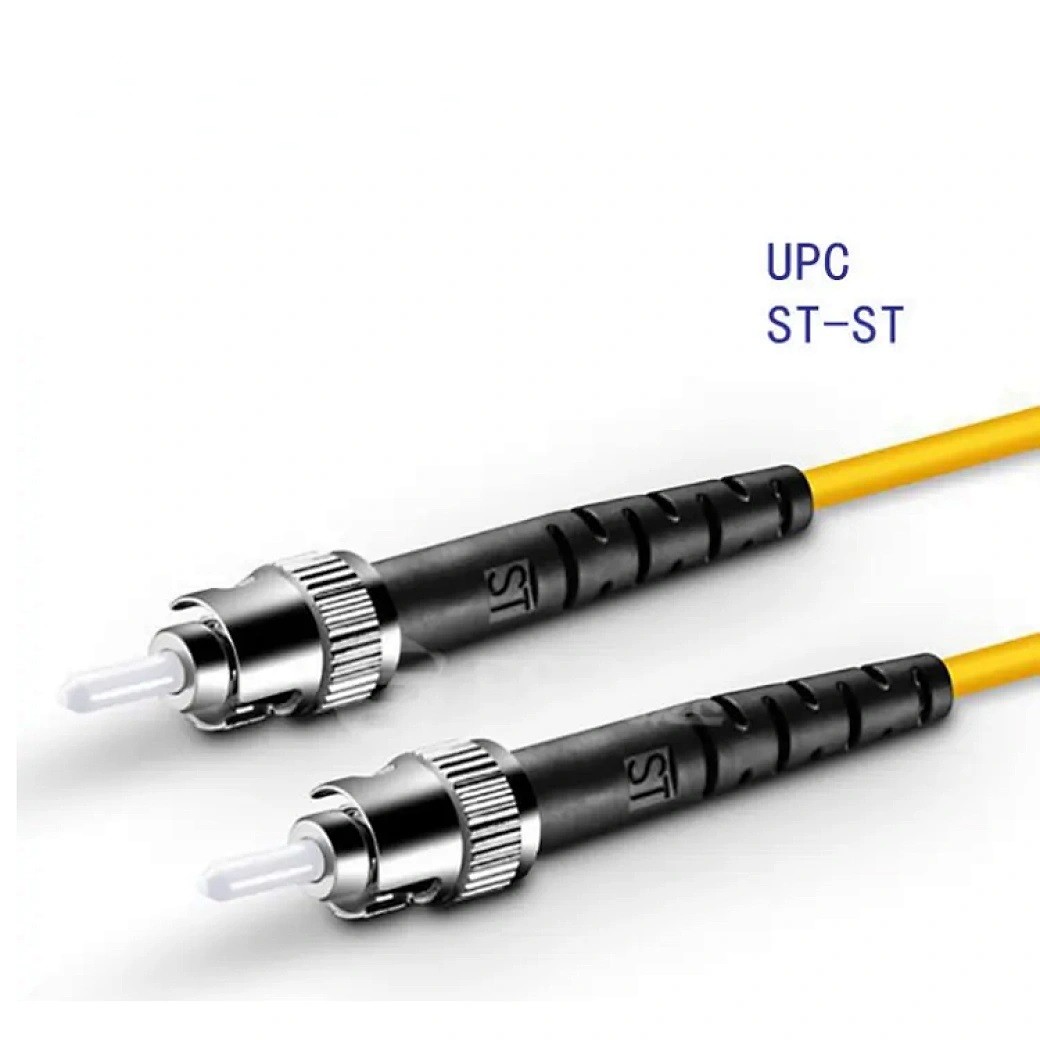

TH Use All Lengths Available ST-ST Single Mode Simplex Fiber Optic Patch Cord Cable
ST 0.9 2.0 3.0 mm G652D G657A1 G657A2 plastic optical fiber patch cord
Fiber Optic Patch Cord is important part of optical network.They have same or different connectors which are
installed on the end of fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection
of lengths and connectors to fulfill your demand.
Multimode Fiber Patch Cable Features:
Push-pull latching mechanism
Non-optical disconnect performance
High quality zirconia ferrules
Materials meet RoHS requirements
Riser, Plenum, PVC, LSZH fiber cables available
Application:
Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation
Specification:
Fiber Connector Performance Specification:
| Connector Type | FC, SC, LC, ST, MU, MTRJ | |||
| Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3/OM4) | ||
| Ferrule End-face | PC | UPC | APC | UPC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
| Exchangeability | ≤0.2dB | |||
| Repeatability | ≤ 0.1dB(1000 times) | |||
| Durability | > 1000 times | |||
| Operating Temperature | -40°C ~ +85°C | |||
Fiber Cable Performance Specification:
| Fiber type | Min. Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm 200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm 3.0/1.0dB/km |
| 50/125 | 850/1300nm 500/500 MHz/Km | 850/1300nm 3.0/1.0dB/km | |
| 50/125 10Gig Optimized | 850/1300nm 2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm 3.0/1.0dB/km |
| 9/125 | 1310/1550nm Approx 100 Terahertz | Up to 100km Varies by transceiver | 1310/1550nm 0.4/0.3dB/km |
Order Information:
| LC/UPC-FC/UPC-SM-SX-3.0mm-1M | ||||||||||||||||
| LC | / | UPC | — | FC | / | UPC | / | SM | — | SX | / | 2.0 | — | 3M | ||
| 1 | 2 | 3 | 2 | 4 | 5 | 6 | 7 | |||||||||
| 1 | Connector#1: LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc. | |||||||||||||||
| 2 | Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male) | |||||||||||||||
| 3 | Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc. | |||||||||||||||
| 4 | Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4 | |||||||||||||||
| 5 | Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core... | |||||||||||||||
| 6 | Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc. | |||||||||||||||
| 7 | Cable Length: 3m(Length in meter) | |||||||||||||||
