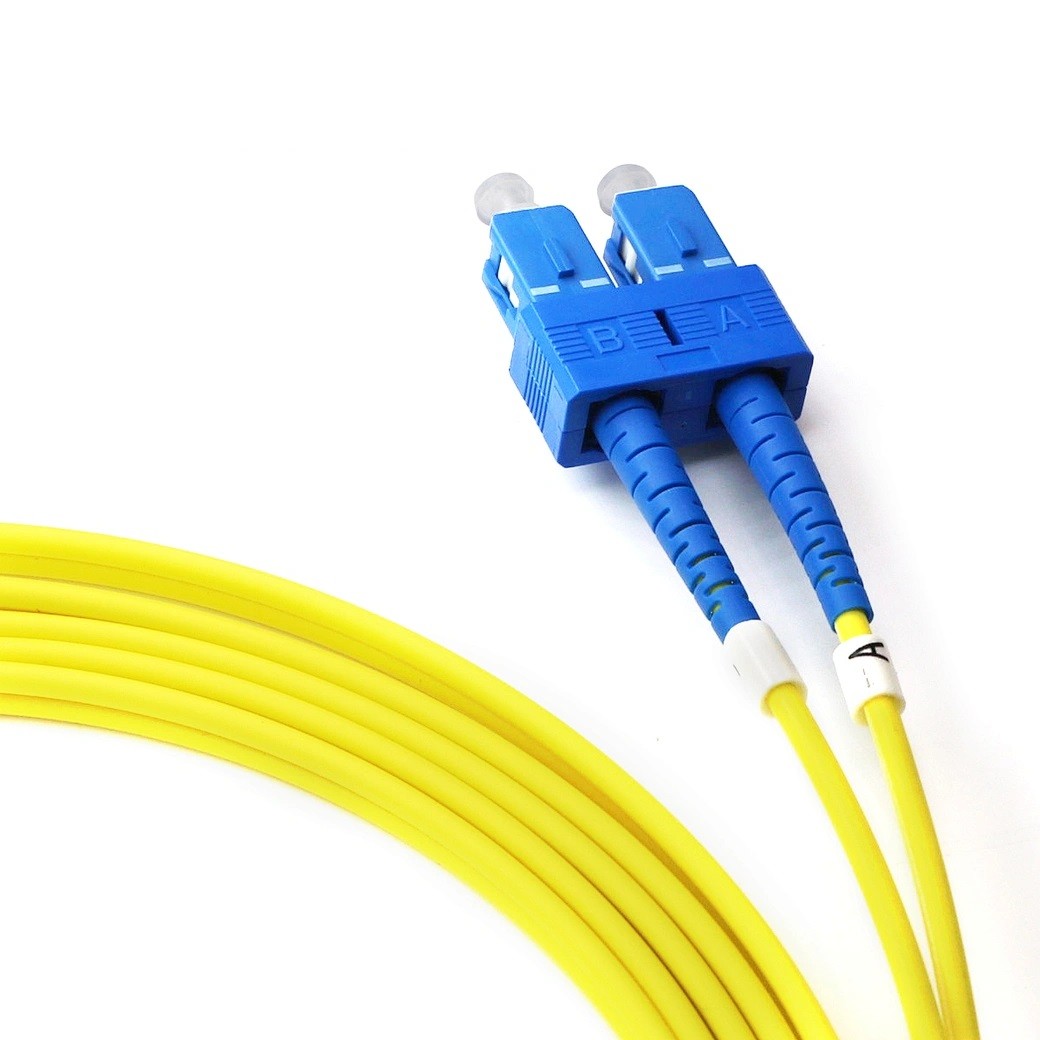

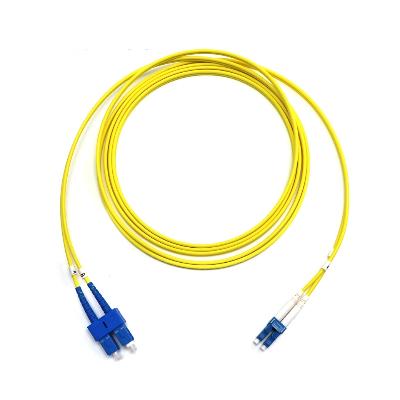

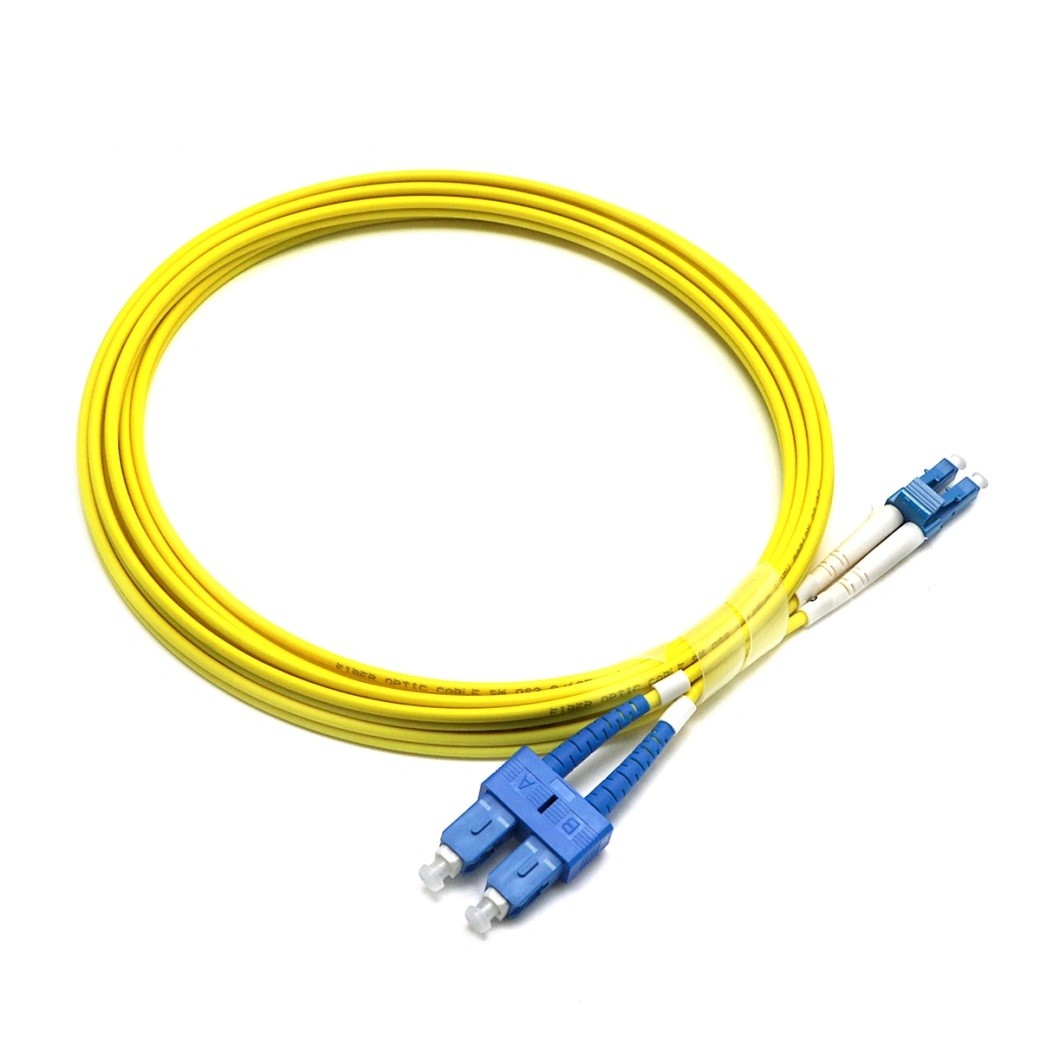

SC Singlemode Simplex Fiber Optic Patch Cord with OFNP Jacket Cable
Description:
SC Fiber optic patch cord is suited for equipment jumper cable, cross connects, and work area connections.All fiber
optic patch cords are manufactured with telecom class and polished A, and 100% factory tested to ensure
performance to TIA/EIA-568-B-3 standards.Fiber Patch C ords are available in both multimode (62.5/125µm
and 50/125µm) and single mode cable-types, in duplex and simplex versions.
Features:
Price Competitive
Factory-terminated and Tested
Good durability
Good exchangeability
High temperature stability
Application:
Telecom Network
Local Ring Network
Optical Fiber Sensor
Optical Fiber Test Equipment
Optical Fiber Communication System
FTTH,LAN,PON & Optical CATV
Specification:
Fiber Optic Connector Performance Specification:
Network Simplex Patch Cord With OFNP Jacket Cable Single Mode Fiber Cable
Connector Type | FC, SC, LC, ST, MU, MTRJ | |||
Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3/OM4) | ||
Ferrule End-face | PC | UPC | APC | UPC |
Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
Exchangeability | ≤0.2dB | |||
Repeatability | ≤ 0.1dB(1000 times) | |||
Durability | > 1000 times | |||
Operating Temperature | -40°C ~ +85°C | |||
Fiber Optic Cable Performance Specification:
Fiber type | Min. Bandwidth | Distance | Attenuation |
62.5/125 | 850/1300nm | @100Mbps 2km @1Gig 220m | 850/1300nm |
50/125 | 850/1300nm | @100Mbps 2km @1Gig 500m | 850/1300nm |
50/125 | 850/1300nm | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm |
9/125 | 1310/1550nm | Up to 100km Varies by transceiver | 1310/1550nm |
Order Information:
| SC/UPC-SC/UPC-SM-SX-3.0mm-3M | ||||||||||||||||
SC | / | UPC | — | SC | / | UPC | / | SM | — | SX | / | 3.0 | — | 3M | ||
1 | 2 | 3 | 2 | 4 | 5 | 6 | 7 | |||||||||
1 | Connector#1: LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc. | |||||||||||||||
2 | Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male) | |||||||||||||||
3 | Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc. | |||||||||||||||
4 | Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4 | |||||||||||||||
5 | Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core... | |||||||||||||||
6 | Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc. | |||||||||||||||
7 | Cable Length: 3m(Length in meter) | |||||||||||||||
