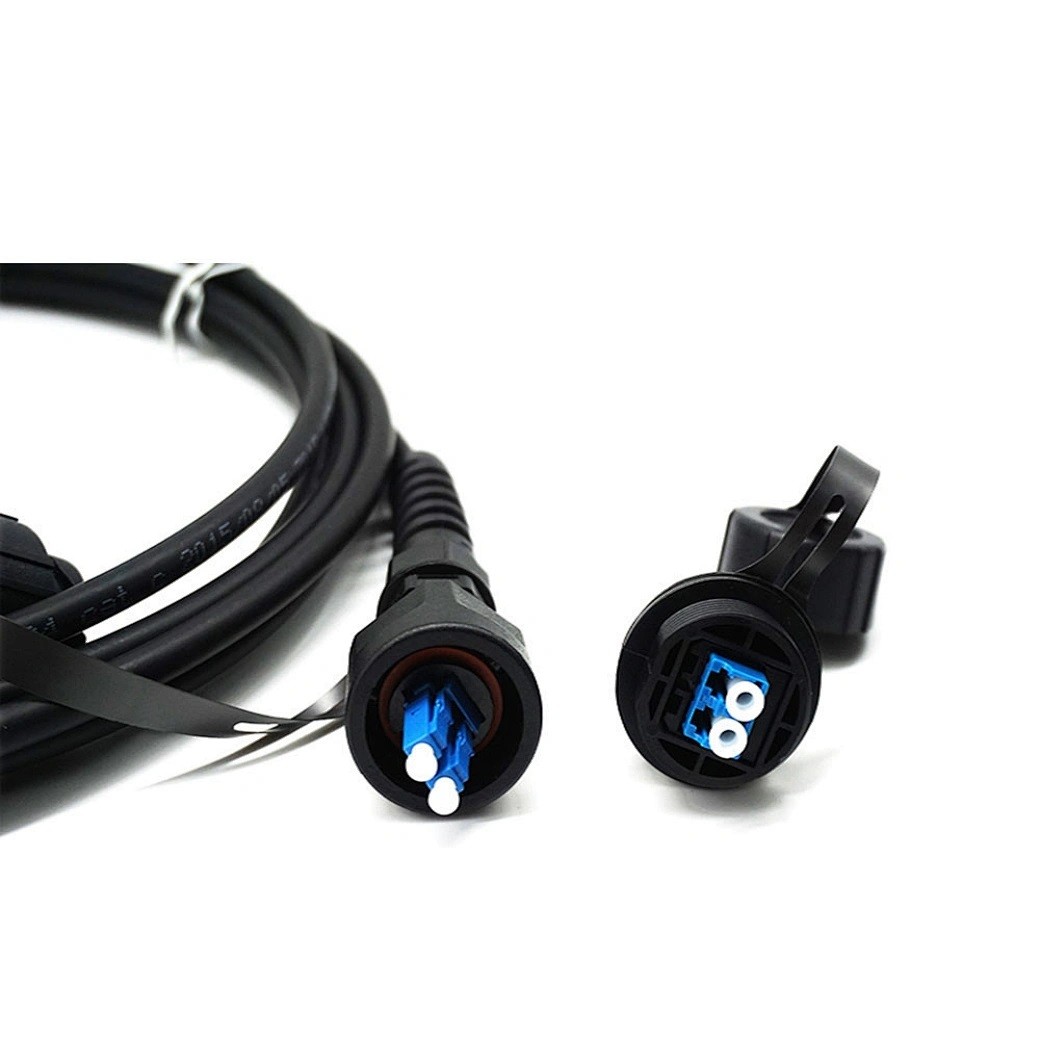

ODVA-LC Fiber Optic Patch Cord FeaturesWaterproof Duplex LC Fiber Optic Patch Cable
Fiber Type : Simplex And Duplex
Duplex Fiber Optic Cable Application : FTTH FTTB FTTX Network
Connector Type : SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
Length : 1m 2m 3m Or Customized
Insertion Loss : ≤0.3dB,< 0.2dB,<=3.0 DB
Connector : SC LC FC ST MU,anything
Armored Fiber Patch Cable Material : High Quality
Product Name : Fiber Optic Patch Cord,duplex Armour SC LC APC UPC Outdoor Gpon Fiber Optic Patch Cord
Return Loss : ≥45dB Color Aqua Or Cusomized
Fiber Optic Cable Patch Type : SC/PC-SC/PC,Single Mode/Multi-mode Item Optical Fiber Patch Cord
Wavelength : OEM
Fiber Count : Simplex Or Duplex
Repeatability : <=0.3dB
Quality Control : 100% Test Before Shipping
Polish : PC/UPC/APC
High Light : ODVA LC Fiber Optic Patch Cable, IP67 Fiber Optic Patch Cable, LSZH Fiber Optic Patch Cord
♦ It has 3 series:LC Duplex,SC Simplex,and MPO.
♦ The unnique spira structure makes connection easy and fast.
♦ Water and dust proof:there is rubber cushion inside,the stability is good and the grade can be IP67.
♦ Low insertion/return loss, steady optical transmitting.
♦ Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
♦ 100% optically tested to ensure quality performance assemblies.
Applications
♦ FTTA,FTTH Application.
♦ 3G,4G,5G Base Station.
♦ Horizontal and Vertical Cabling.
♦ BBU,RRU,RRH,LTE.
Optical Performance
| Model | SM | MM |
| Fiber Count | 2 core |
| Polish | PC |
| Housing Color | Blue or customized | Beige or customized |
| Test Eavelength | 1310/1550nm | 850/1300nm |
| Insertion Loss | less than 0.35dB | Less than 0.35dB |
| Return Loss | >50dB | >30dB |
| Durability (500 matings) | less than 0.2dB |
| Cable OD | 4.8mm, 7.0mm armored / non armored or customized |
| Storage temperature | -20~70℃ |
| Operating temperature | -40~85℃ |
1.The ODVA-SC/LC/MPO connectors, together with the support optical cable, are becoming the standard interface
specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications.
2.The product however, is not limited to the above applications.
3.The ODVA-LC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP68.
4.They are well suited for Industrial and Aerospace and Defense applications.
Model No: Waterproof Duplex IP67 ODVA -LC
Fiber Type : Simplex And Duplex
Application : FTTH FTTB FTTX Network
Connector Type : SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
Length : 1m 2m 3m Or Customized
Insertion Loss : ≤0.3dB,< 0.2dB,<=3.0 DB
Connector : SC LC FC ST MU,anything
Material : High Quality
