FC/UPC-FC/UPC Multimode OM5 Duplex Customized Length FC Fiber Optic Patch Cord
High Quality FC-FC Duplex OM5 2.0mm Optic fiber Network Optical Jumper Patch Cord
Om 5 Fiber Specification:
Type | Standard,Master |
Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
Fiber | Singlemode/Multimode |
Cable | Simplex, Duplex |
Polishing Manner | UPC,SPC,APC (8°& 6°) |
Insertion Loss | ≤ 0.1dB (For Singlemode Master) |
Return Loss | UPC ≥ 50dB |
Repeatability | ±0.1dB |
Operating temperature | -400C to 850C |
Geometry Requirement | Ferrule Endface Radius |
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber
optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major
application areas: computer work station to outlet and patch panels or optical cross connect distribution center.
TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core,
armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables,
the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO
cables in stock.
Om5 Fibre Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.
4. Environmentally Stable
Om5 Fiber Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

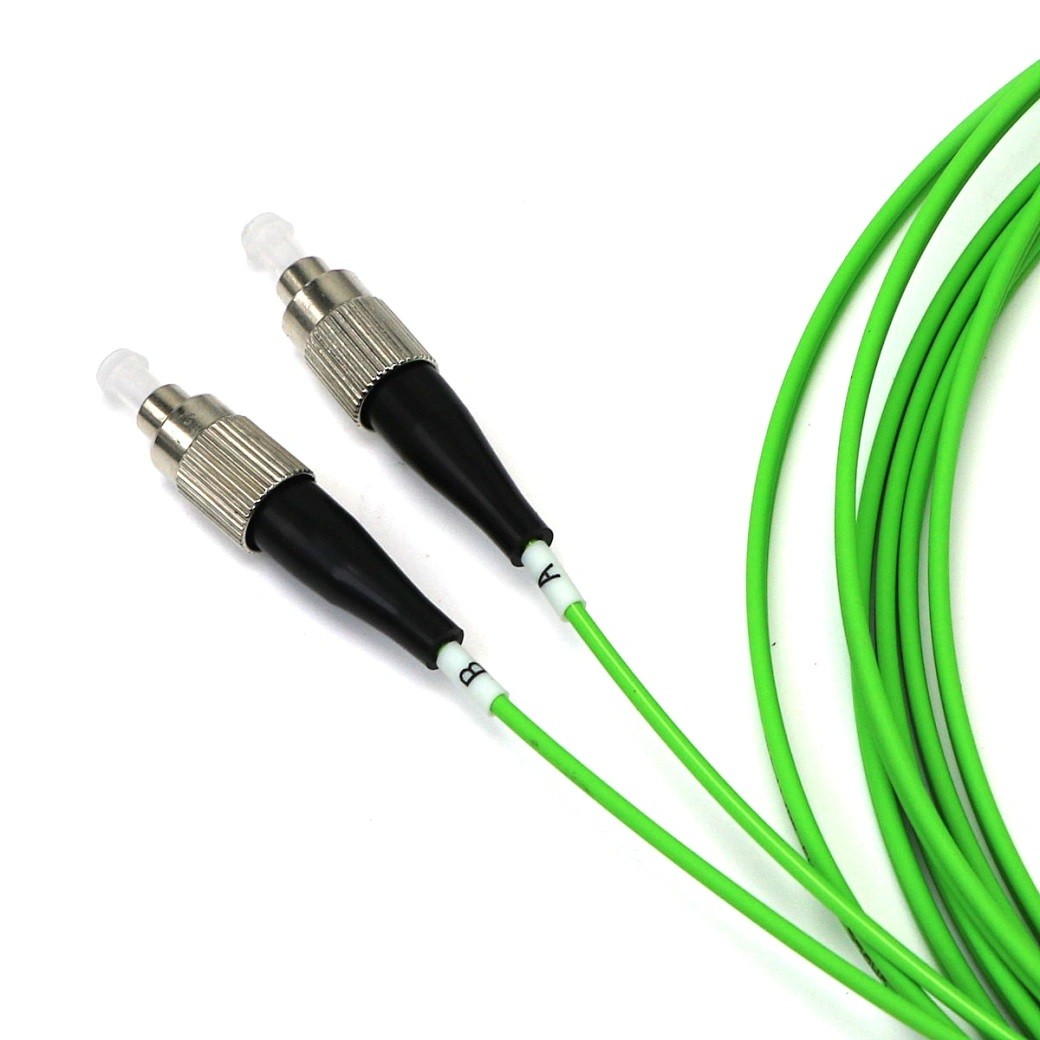

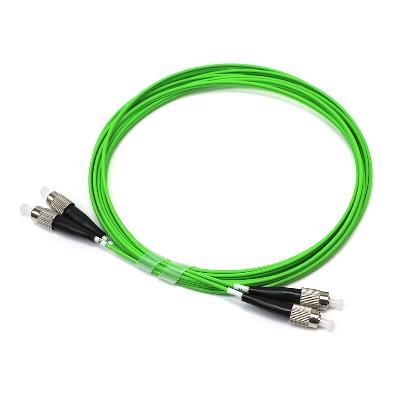

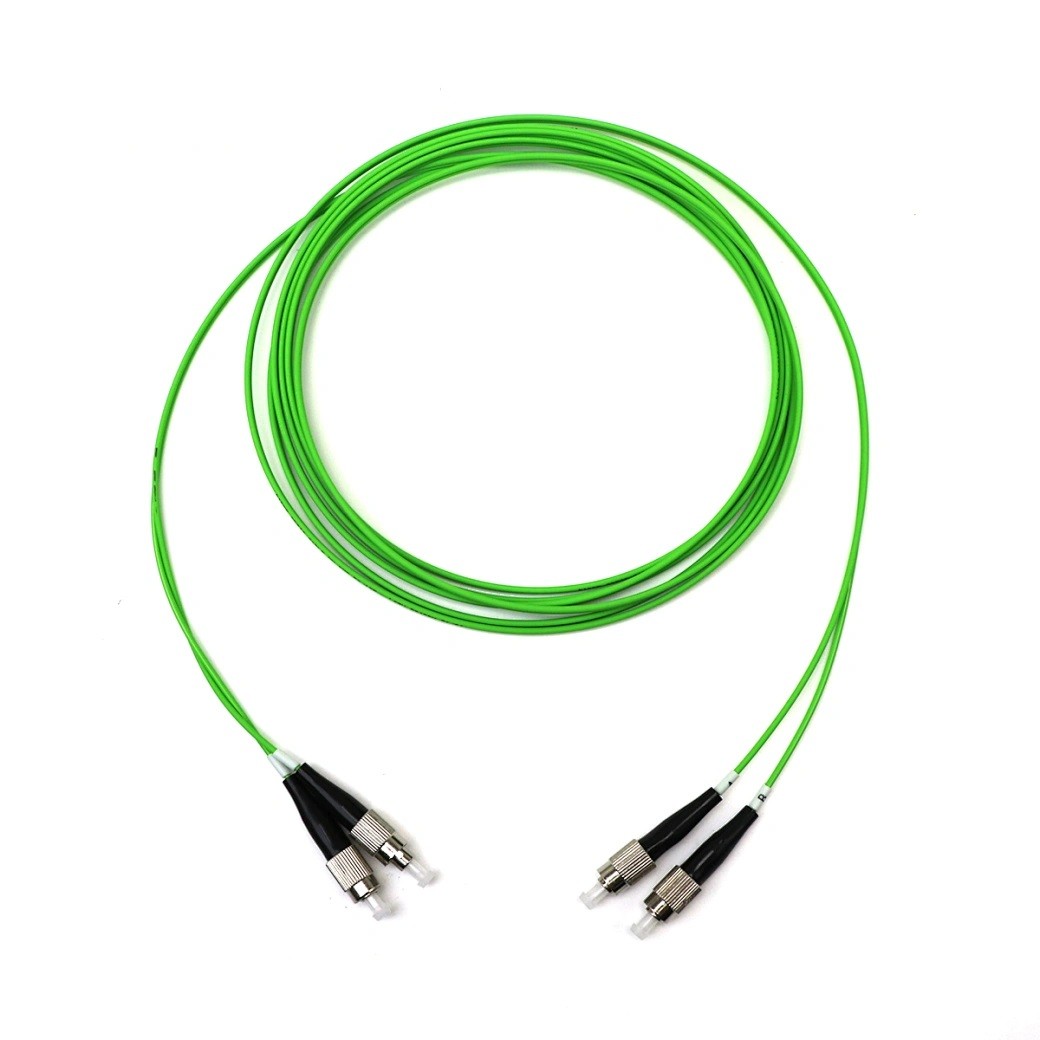

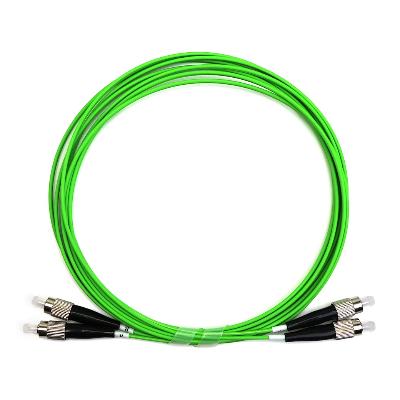

Product Picture:
