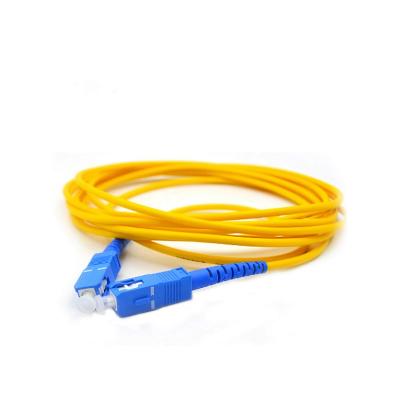

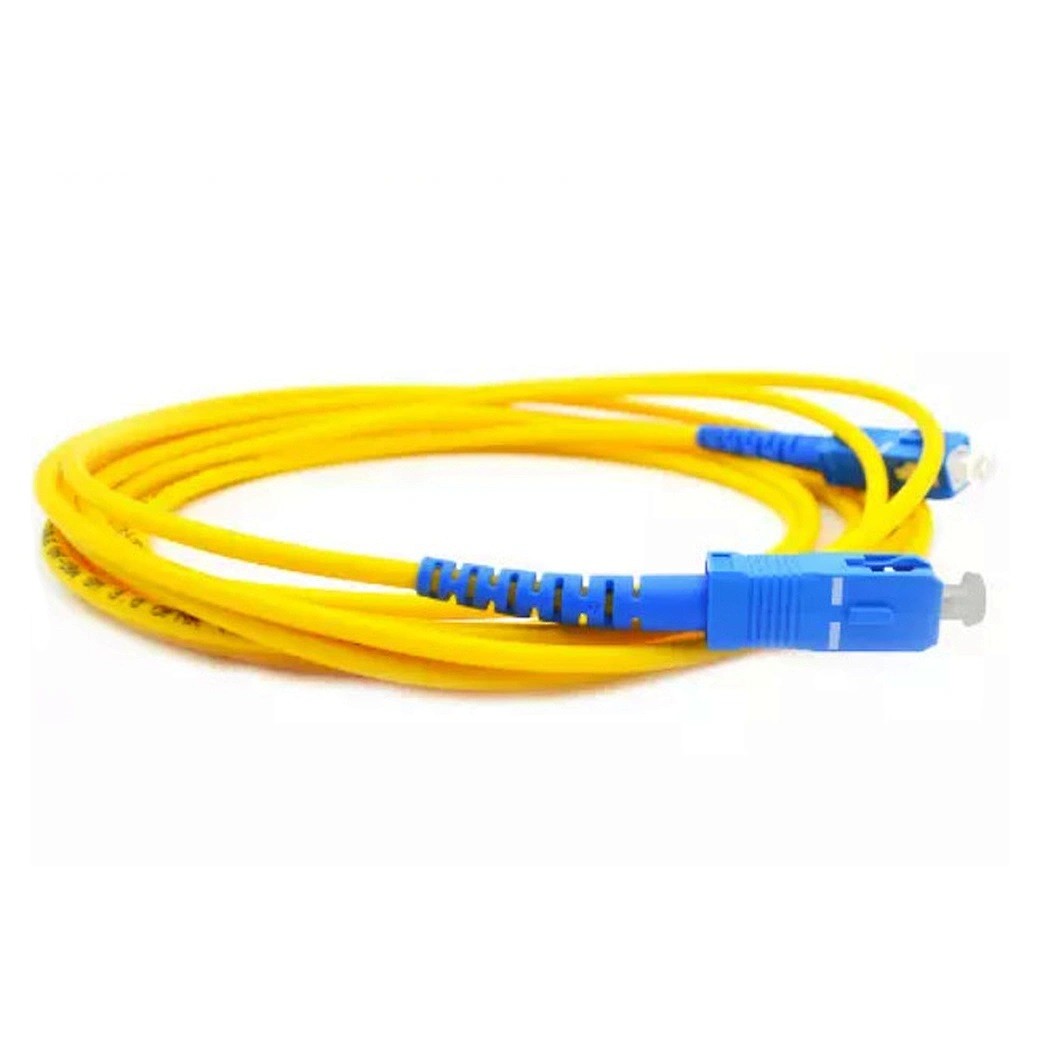

Simplex Single Mode LSZH Fiber Optic Patch Cord For FTTH Network
FTTH SC/UPC-SC/UPC Simplex SingleMode 1 Cord LSZH Fiber Optic Patch Cord
Lszh Fiber Optic Cable Specification:
Type | Standard,Master |
Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
Fiber | Singlemode/Multimode |
Cable | Simplex, Duplex |
Polishing Manner | UPC,SPC,APC (8°& 6°) |
Insertion Loss | ≤ 0.1dB (For Singlemode Master) |
Return Loss | UPC ≥ 50dB |
Repeatability | ±0.1dB |
Operating temperature | -400C to 850C |
Geometry Requirement | Ferrule Endface Radius |
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic
cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application
areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber
provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch
cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC,
LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.
4. Environmentally Stable
Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application
