LC/UPC-FC/UPC Fiber Optic Patch Cord Duplex Singlemode PVC LSZH 2.0mm 3.0mm Patch cable
High Quality LC-FC Duplex SM 2.0mm/3.0mm Optic fiber Network Optical Jumper Patch Cord
LC Single Mode Specification:
Type | Standard, Master |
Style | LC, SC, ST, FC, MU, DIN, D4,MPO, SC/APC, FC/APC, LC/APC, MU/APC |
Fiber | Singlemode/Multimode
50/125, 62.5/125 (Multimode) OM2 & OM1
50/125, 10G (Multimode) OM3 |
Cable | Simplex, Duplex / Φ3.0mm, Φ2.0mm, Φ0.9mm / PVC or LSZH |
Polishing Manner | UPC,SPC,APC (8°& 6°) |
Insertion Loss | ≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750 |
Return Loss
(Singlemode) | UPC ≥ 50dB / SPC ≥ 55dB / APC ≥ 60dB (typ.65dB) / Tested by JDS RM3750 |
Repeatability | ±0.1dB |
Operating temperature | -400C to 850C |
Geometry Requirement
( Singlemode) | Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1
|
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends.Fiber Optic Patch Cables are used in two major applicationareas: computer work station to outlet and patch panels or optical cross connect distribution center. fiberprovides various types of Fiber Optic Patch Cables including single-mode, multimode, multi-core, armored patchcables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC,MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
Feature:1. Low insertion loss.2. High return loss.3. Excellent Repeatability, exchangeability, wearability and stability.4. Environmentally Stable.Application:1. FTTH, LAN, PON & Optical CATV, Local ring net.2. Optical fiber communication system .3. Optical fiber test equipment.4. Optical fiber sensor .5. Industry and military application.

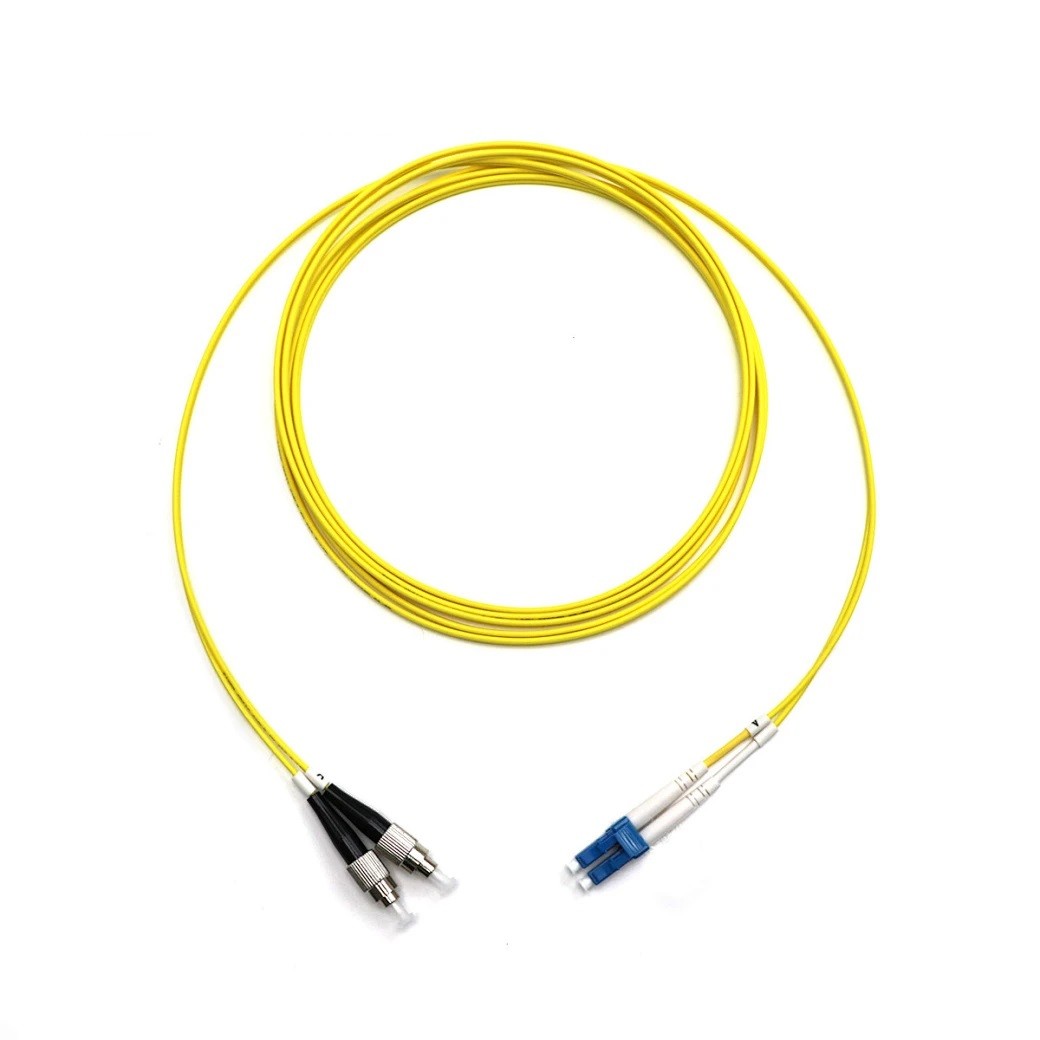

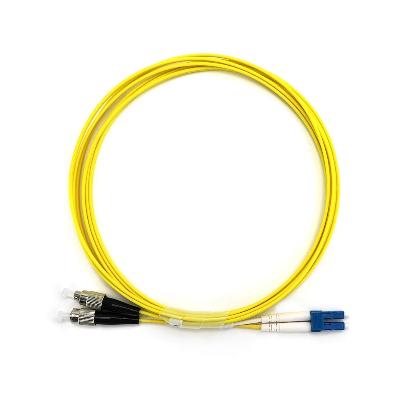

Product Picture:
